Fireplace inserts Aquaflam®
Gallery
Design
7 kW Panoramic
7 kW Prismatic

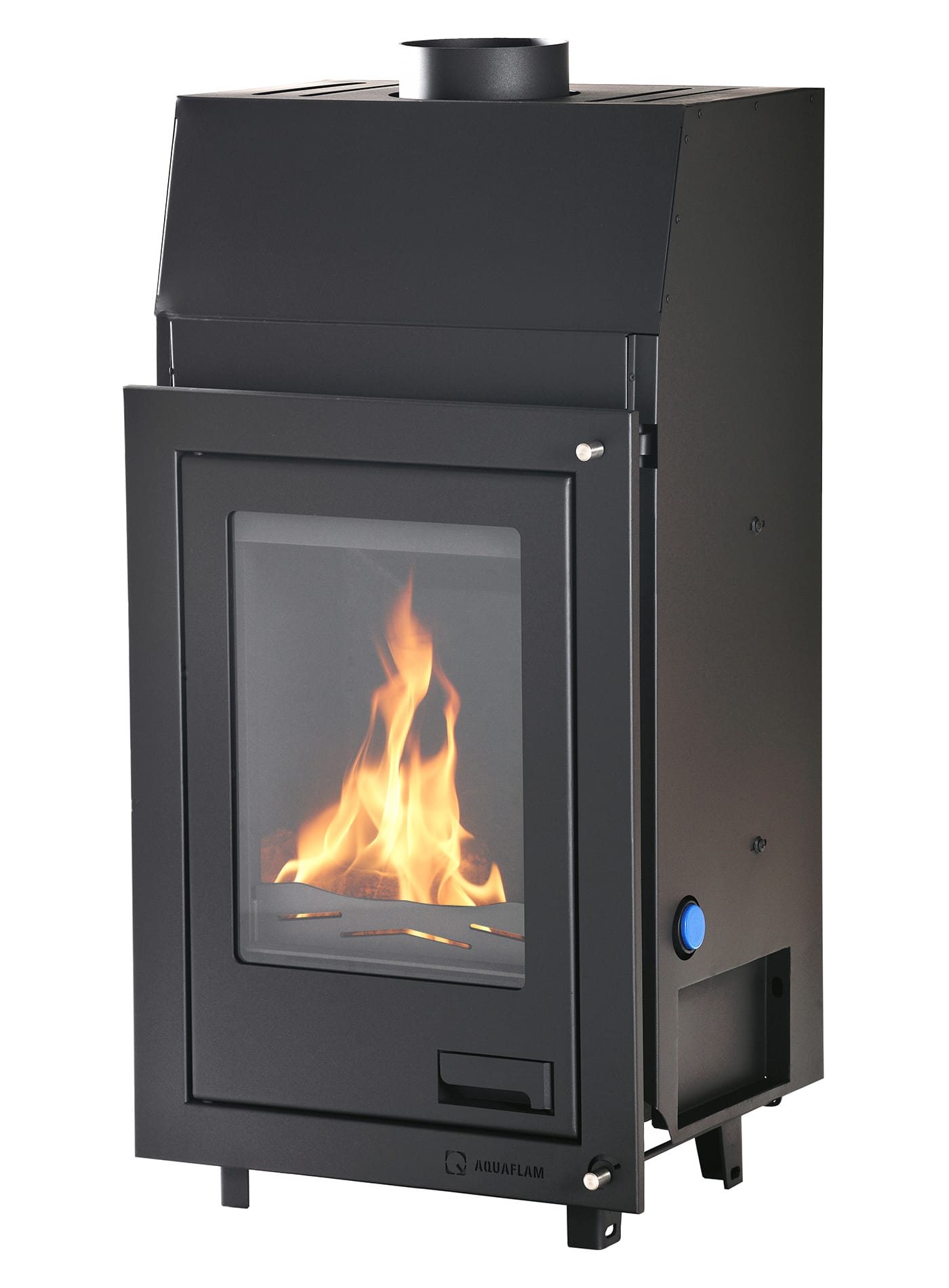

7 kW Flat

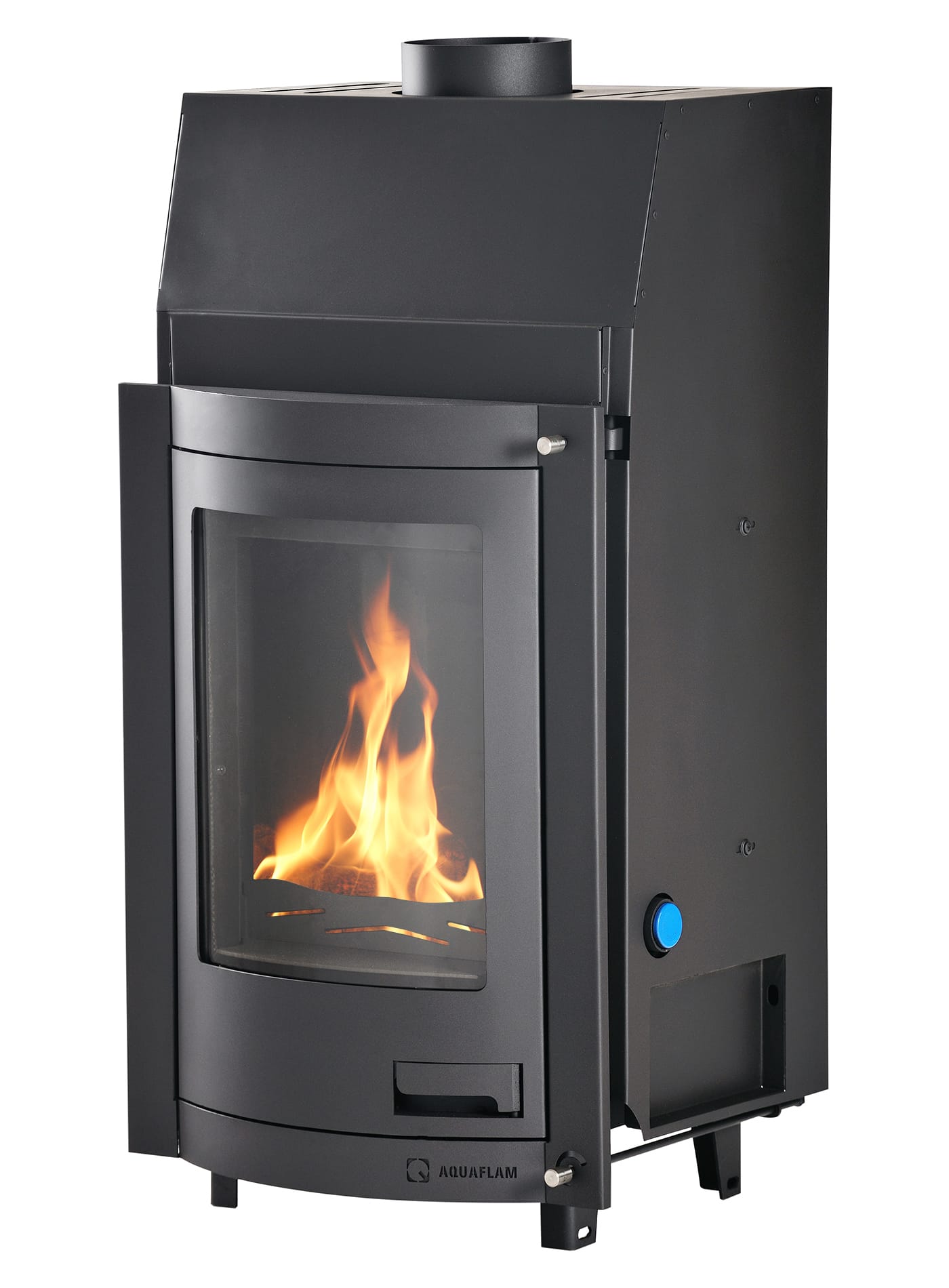

12 kW Panoramic
12 kW Prismatic

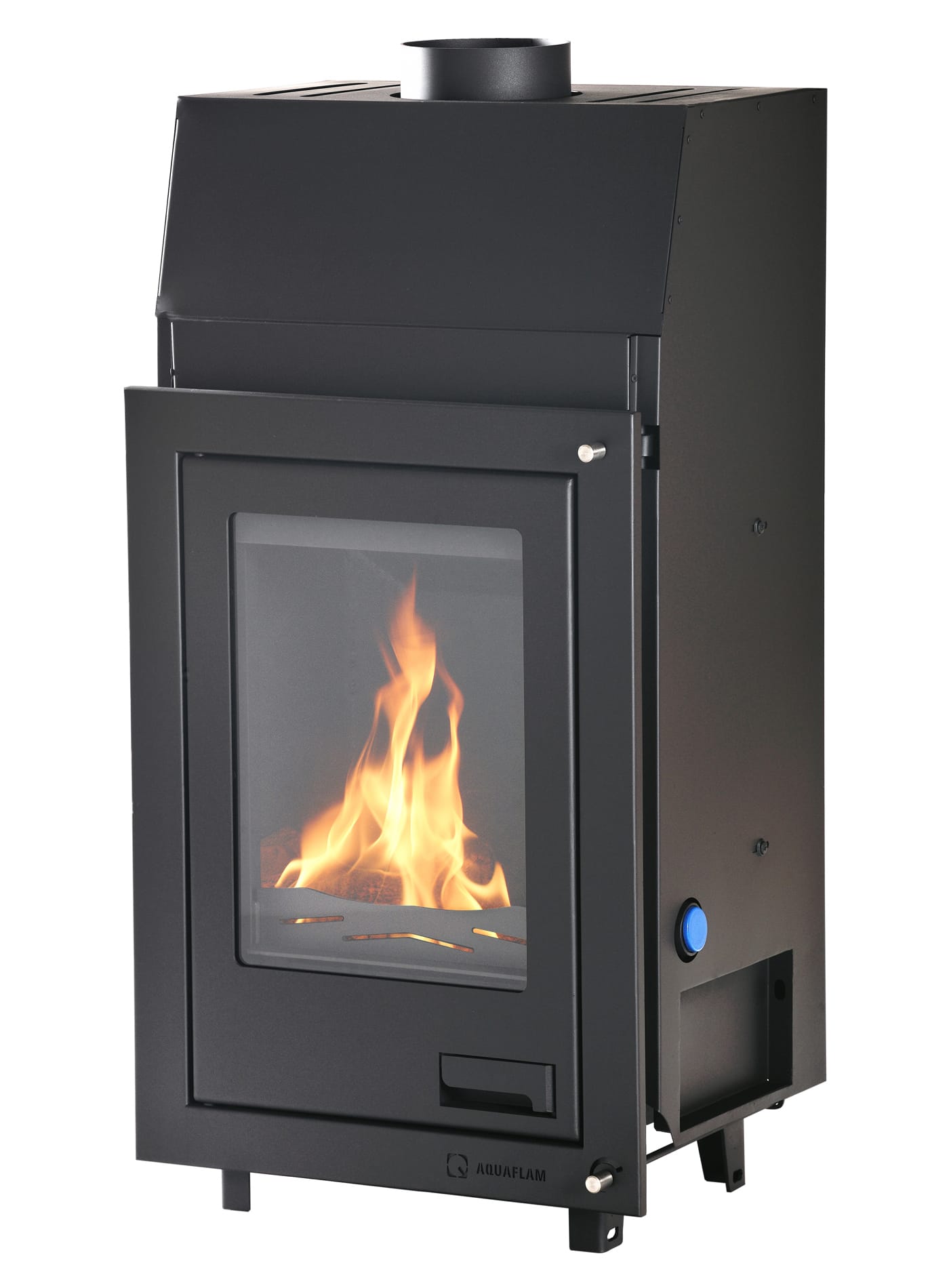

12 kW Flat

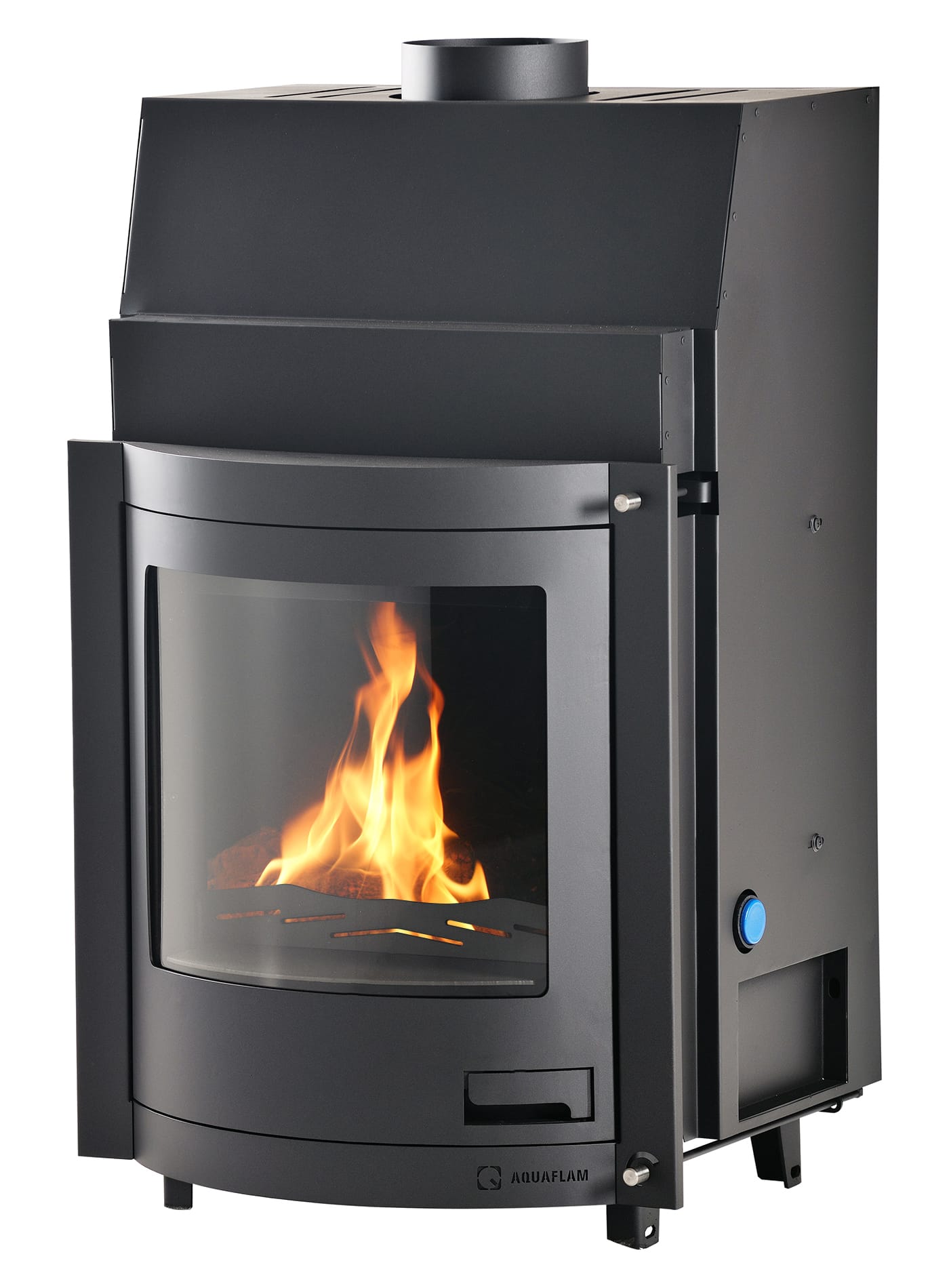

17 kW Panoramic

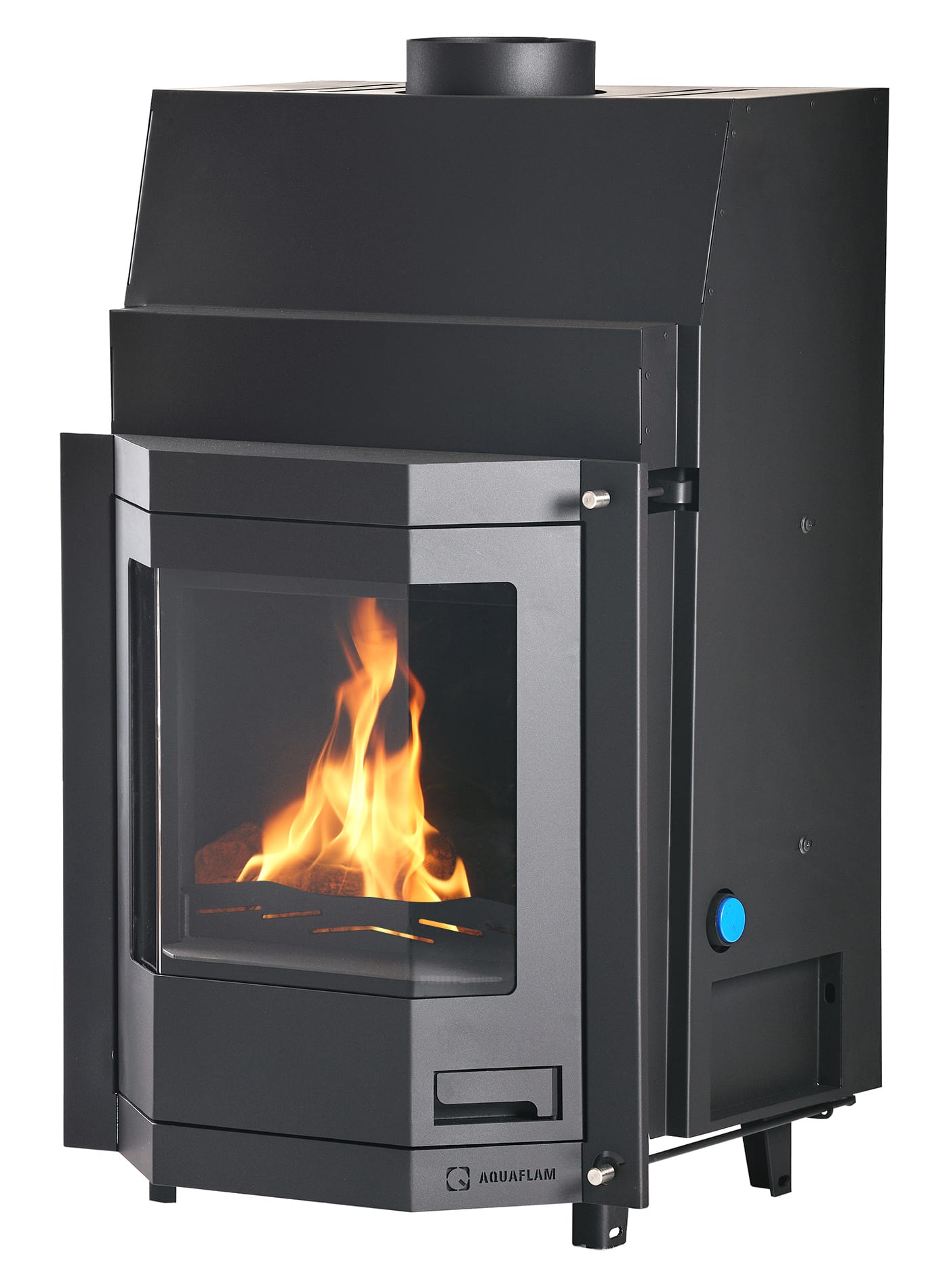

17 kW Prismatic

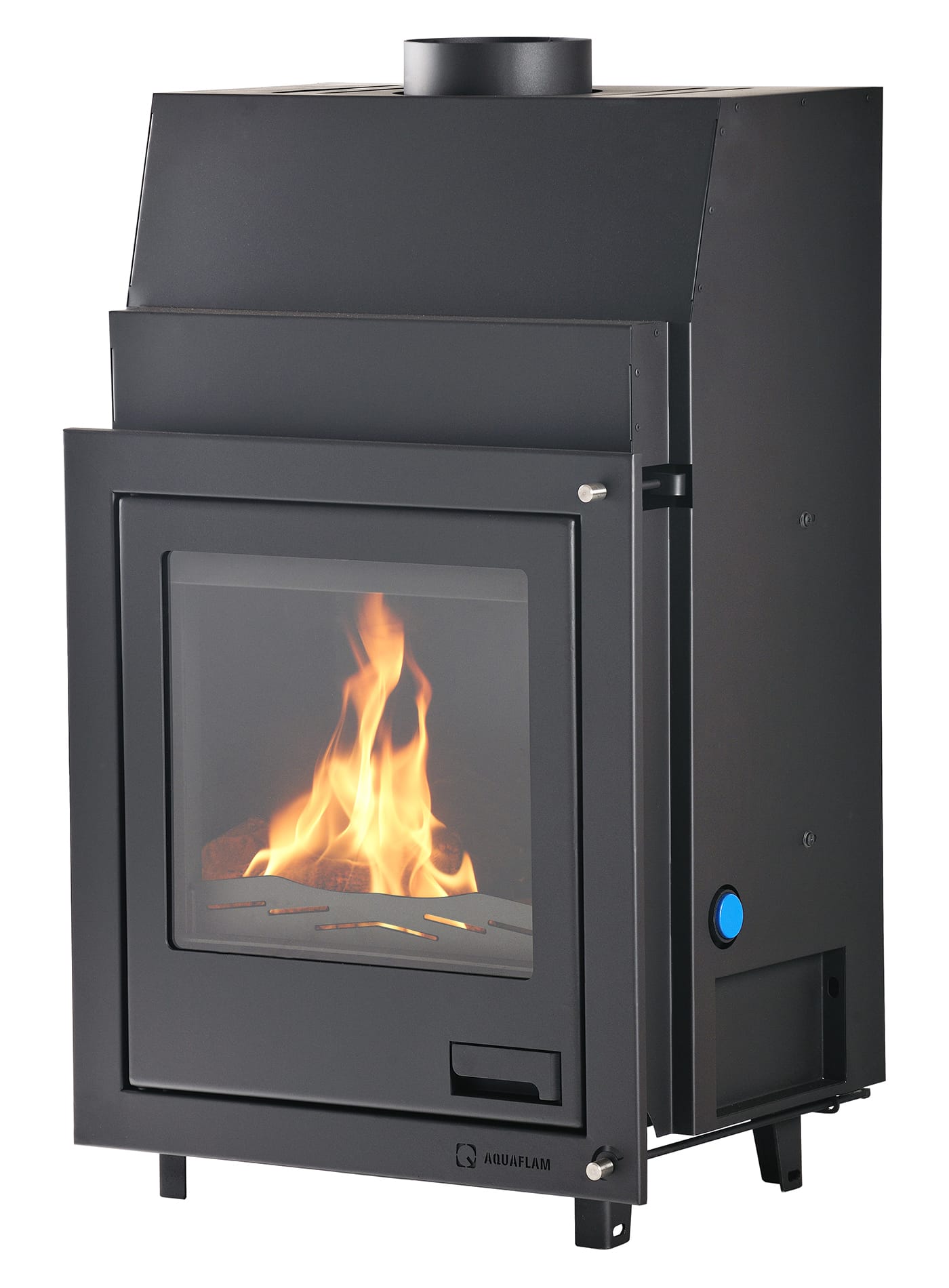

17 kW Flat

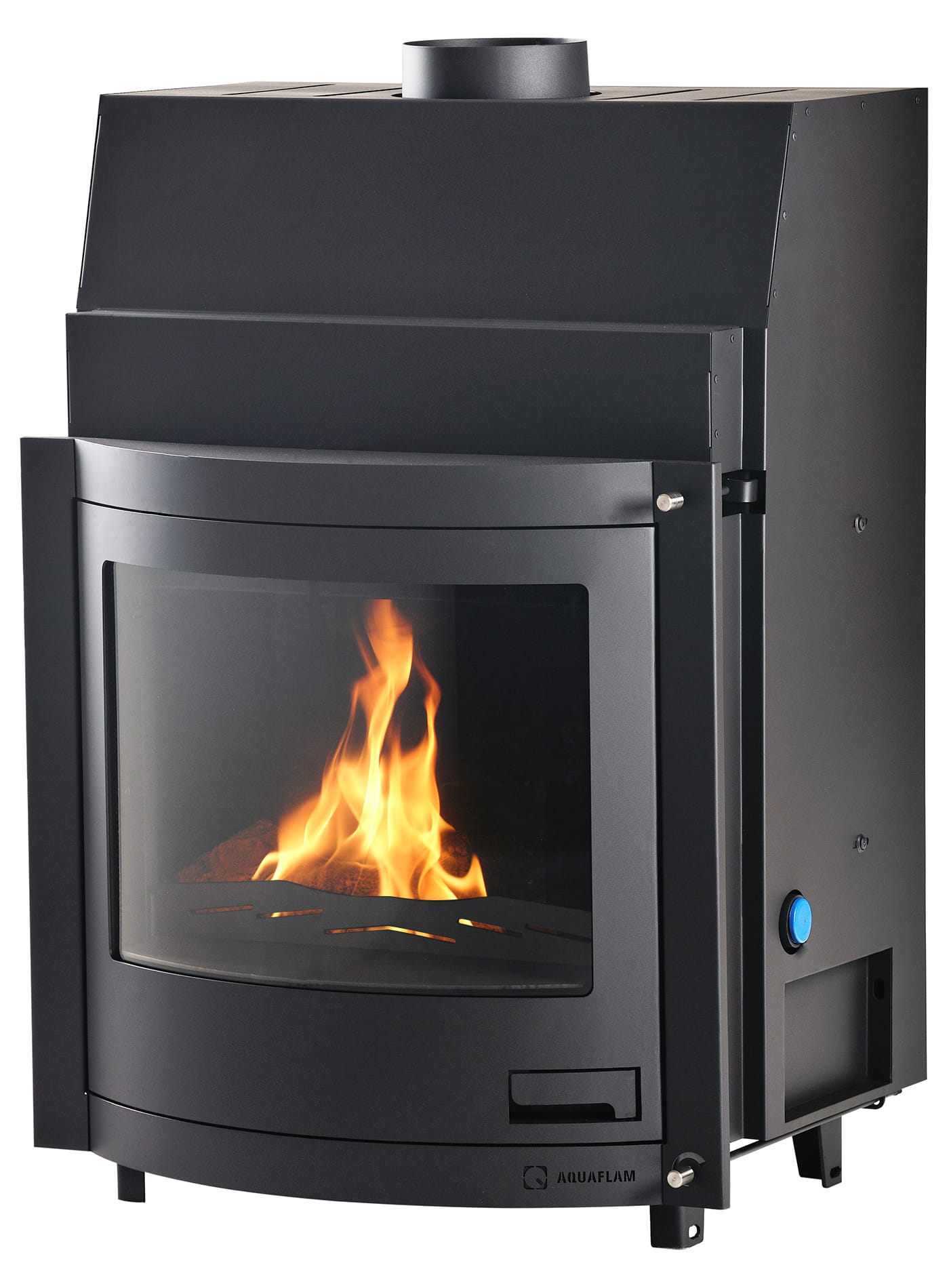

25 kW Panoramic

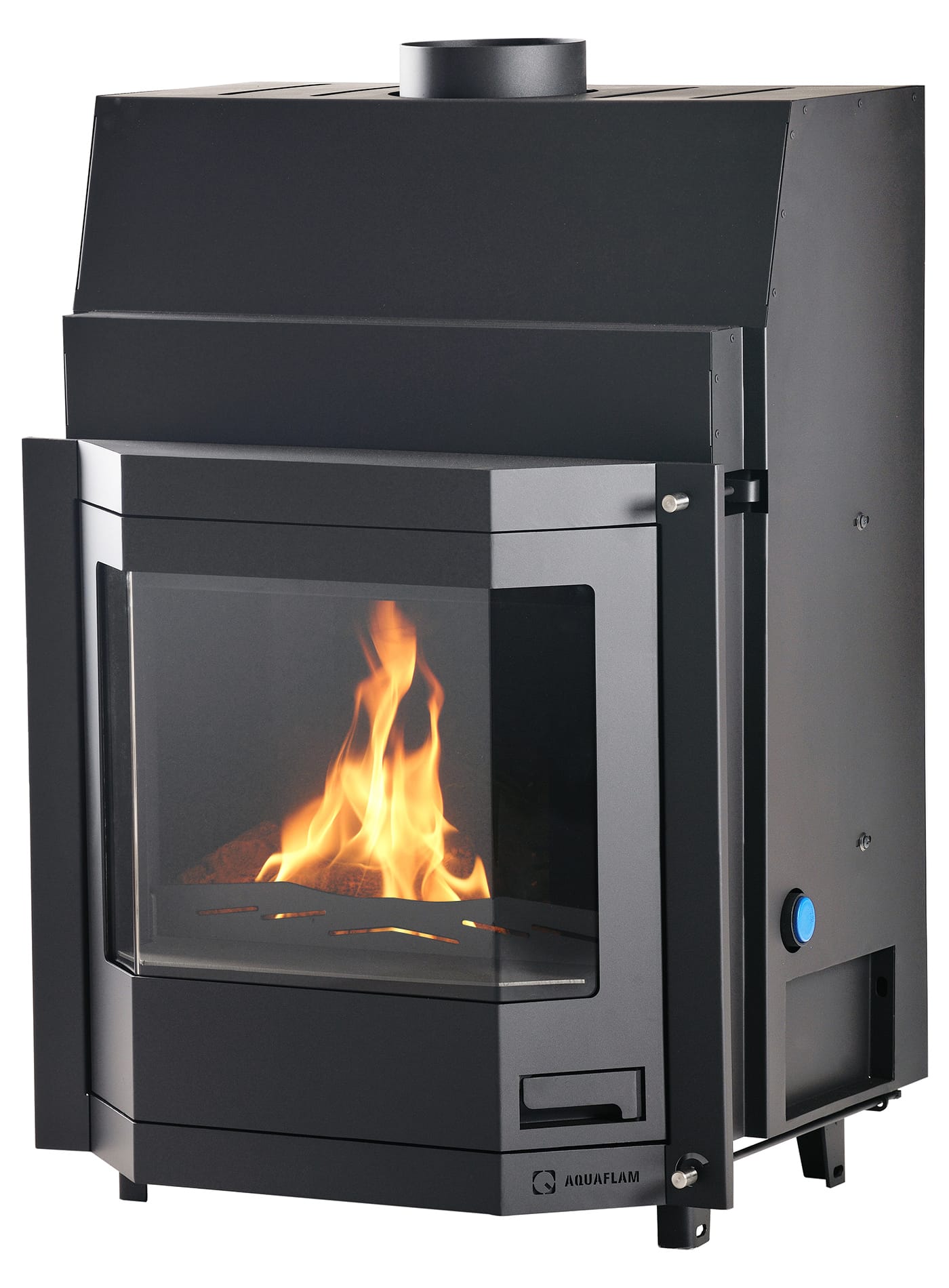

25 kW Prismatic

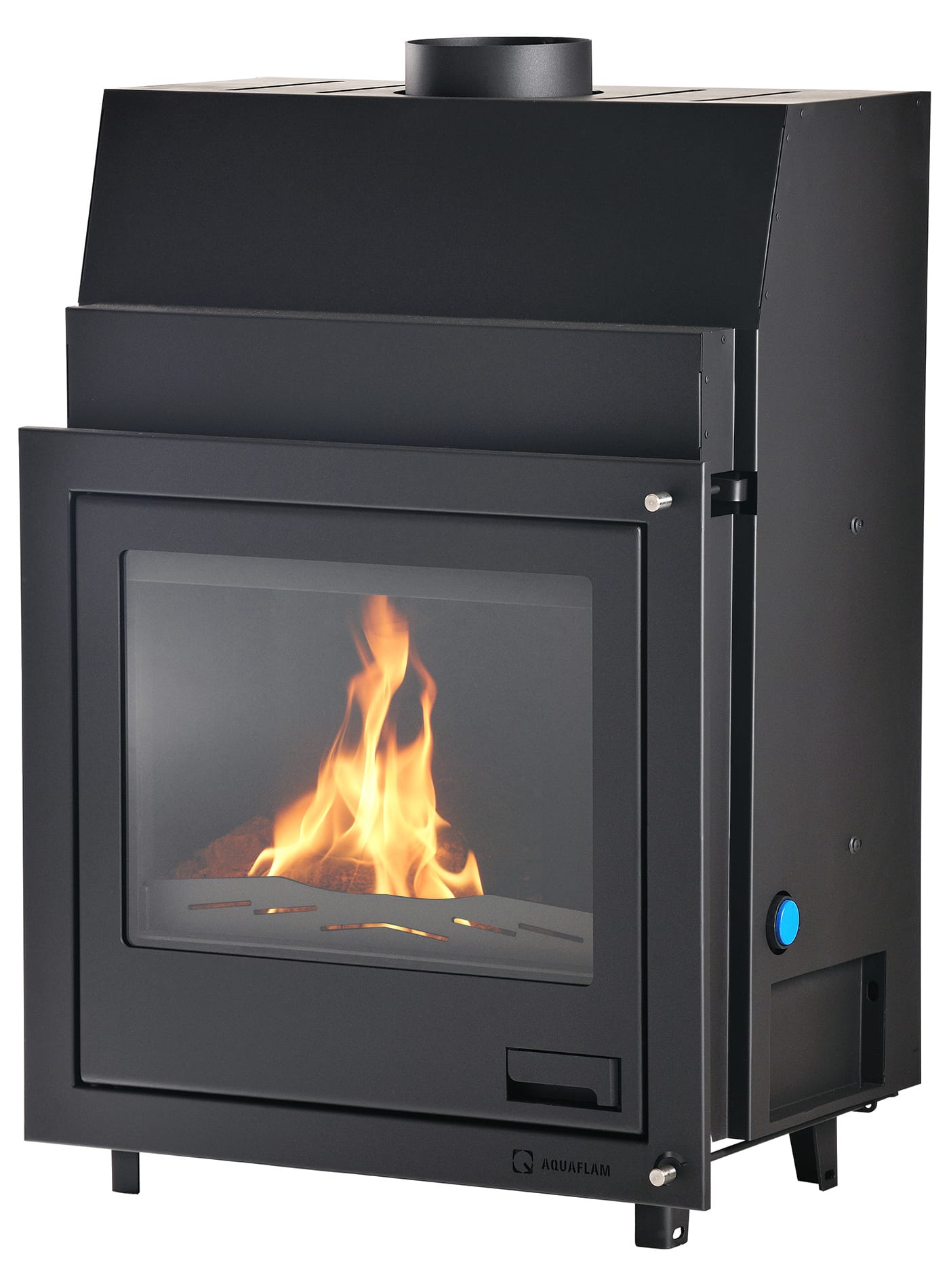

25 kW Flat
Basic features of Aquaflam hot water fireplace inserts: efficient, double glass cleaning with preheated air, secondary combustion, Eco-Air-In, Flamme Verte eco-heating sign, meets the standards: EN 13229, BImSchV - Stufe 2, DINplus, Flamme Verte, external air supply (primary, secondary, tertiary air supply), no fireclay technology (absence of lining leads to a more general transfer of heat to the exchanger), possibility of double-sided connection of the water exchanger, cooling loop in each variant, 2 outputs for sensor connection, demountable front frame of the insert, types of glass: flat, panoramic, prismatic (bent), damper for chimney draft control , cast iron grate, ashtray, 5 year warranty

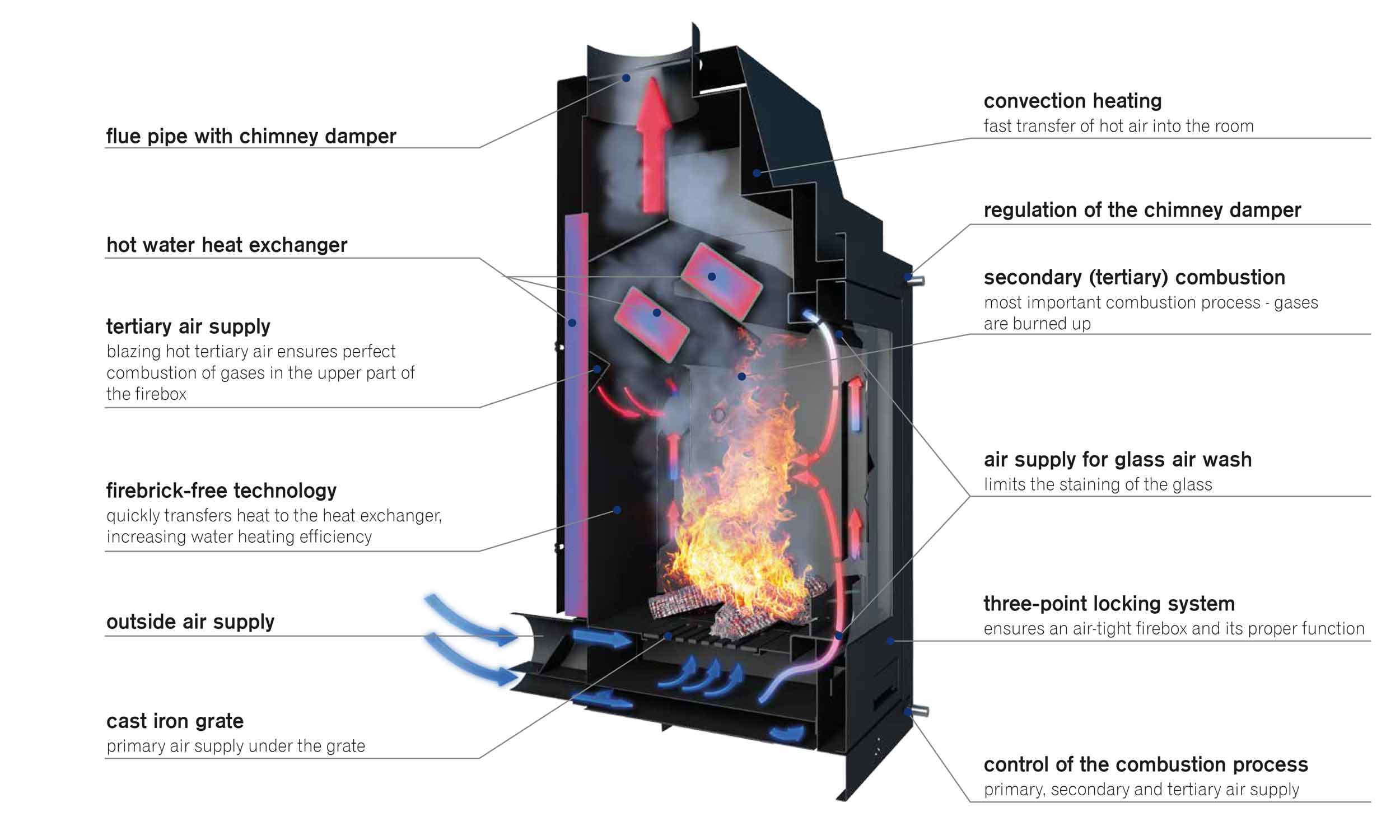

Fire inserts Aquaflam – 3D Cut
Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.
Combustion regulation
Manual regulation
The air supply is controlled manually with a push/pull rod.
Basic regulation
The stove is operated by a potentiometer in the lower right corner of the door.
Parameters
| Aquaflam Fireplace Inserts | 7 kW | 12 kW | 17 kW | 25 kW |
|---|---|---|---|---|
| Power to the water [kW] | 5 | 10 | 14 | 21 |
| Power to air [kW] | 2 | 2 | 3 | 4 |
| Performance range [kW] | 3 –10 | 8 – 16 | 13 – 21 | 21 –30 |
| Effectiveness of the liner [%] | 79,1 | 79,1 | 79,0 | 78,0 |
| Emission CO (Při 13% O2) [%] | 0,1 | 0,1 | 0,1 | 0,1 |
| Average flue gas temperature [°C] | 247 | 247 | 255 | 278 |
| Heat exchanger volume [l] | 22 | 27 | 32 | 36 |
| Weight [kg] | 130 | 136 | 141 | 177 |
| Flue gas duct [mm] | 160 | 160 | 180 | 180 |
| Length of logs [cm] | 35 | 35 | 45 | 55 |
| Warranty | 5 years | 5 years | 5 years | 5 years |
| Meets standards | EN 13240, BlmSchV - Stufe 2, Ekodesign | |||
