Boiler stoves AQUAFLAM VARIO®
Gallery

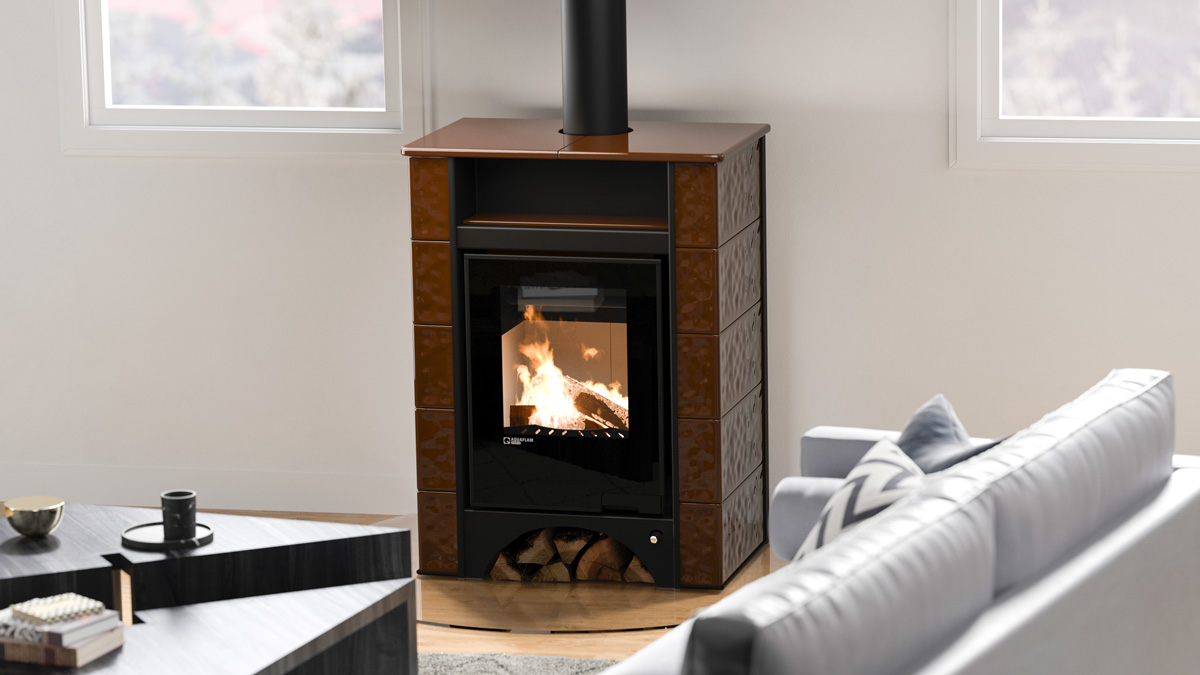

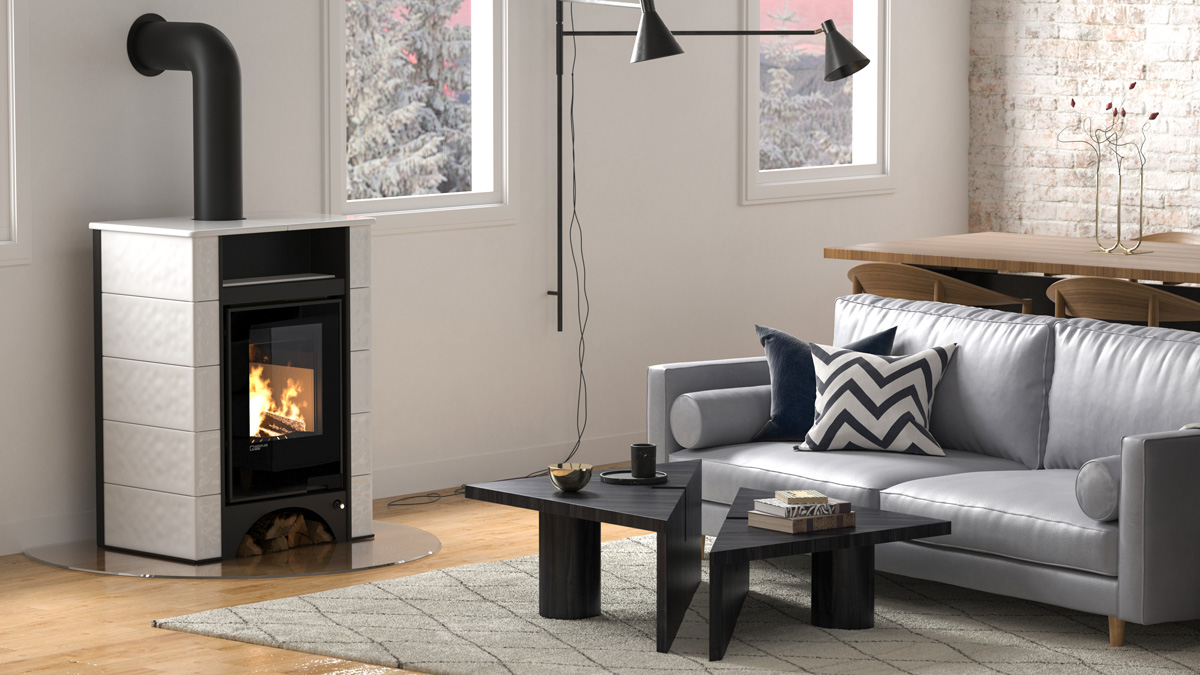

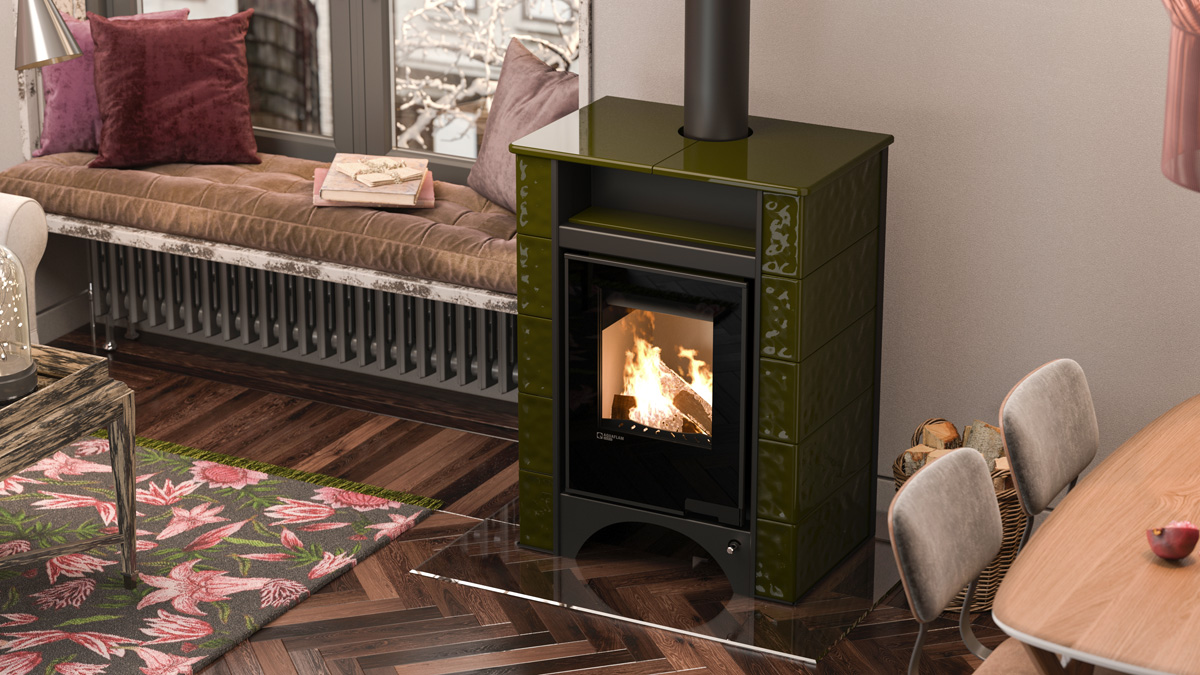

Rustic Boiler Stoves PERU
Design

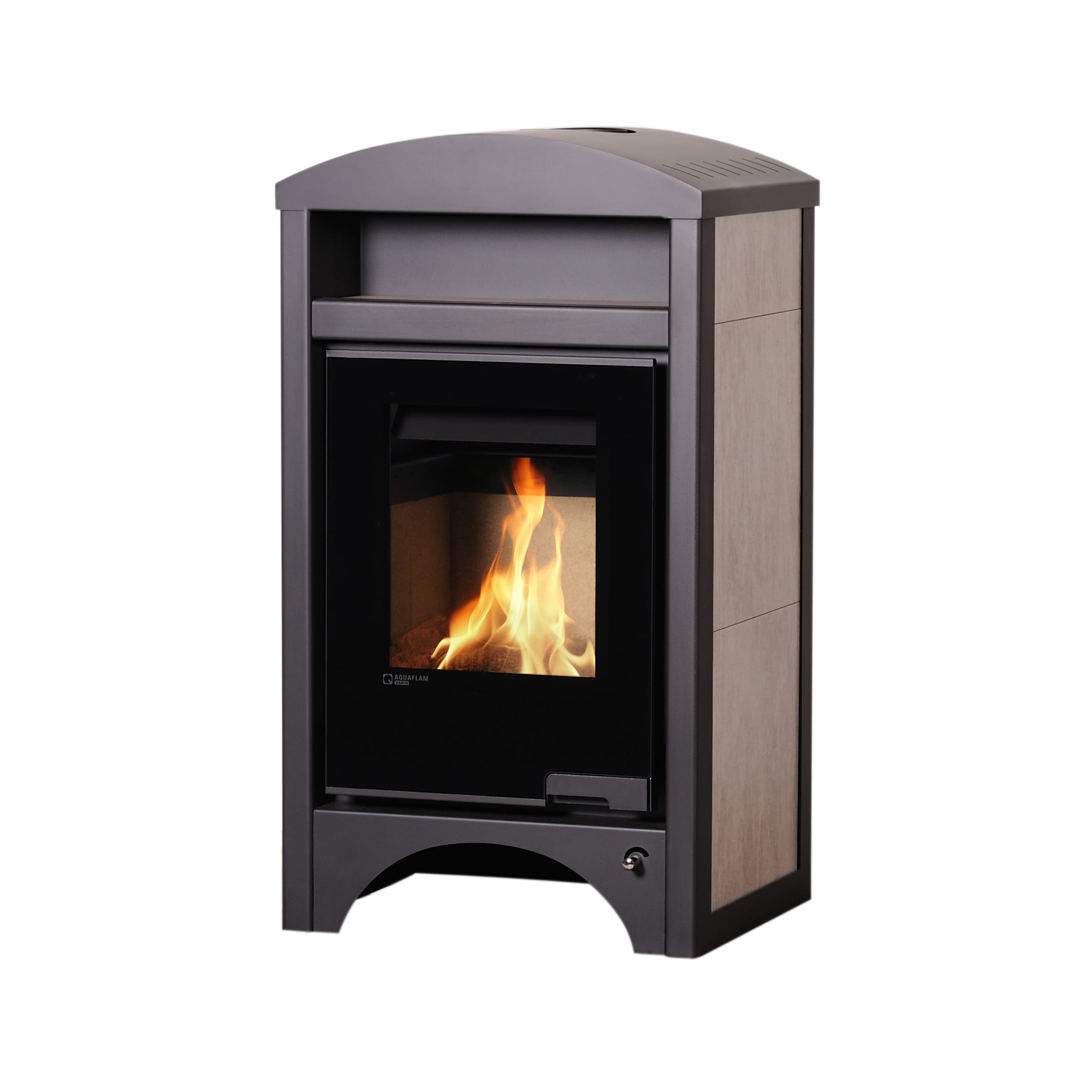

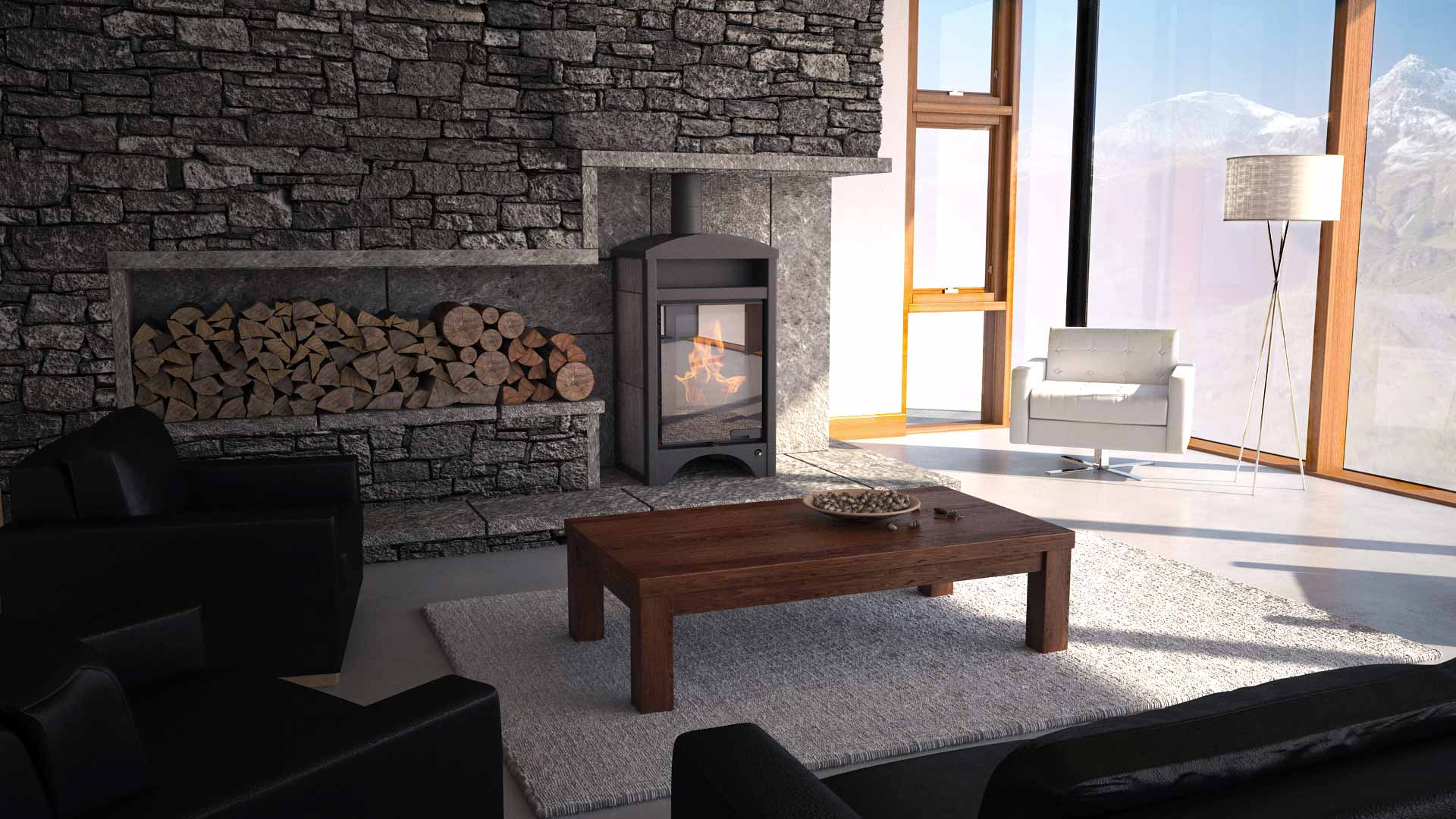

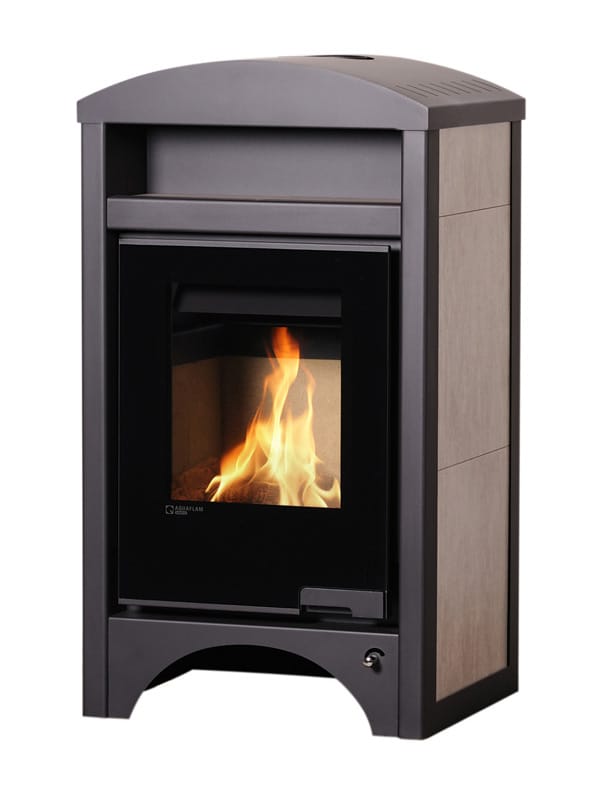

Barma - bleached oak

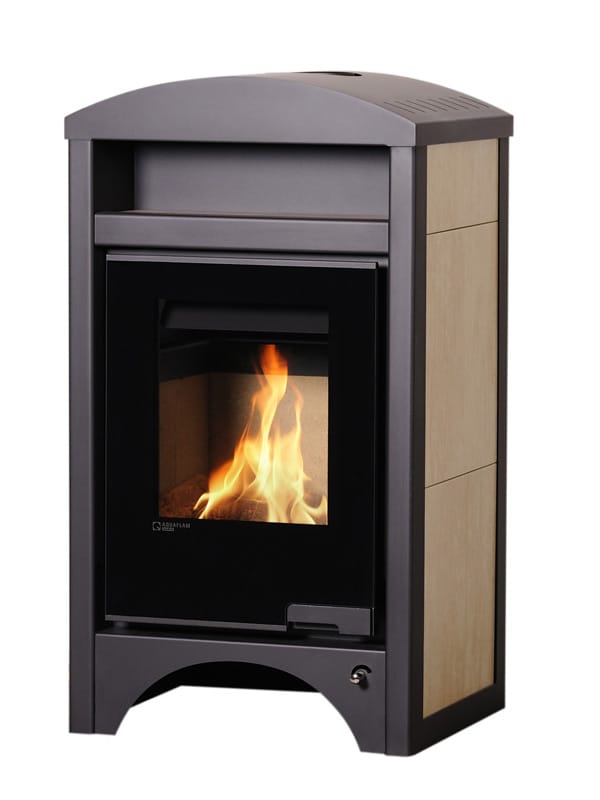

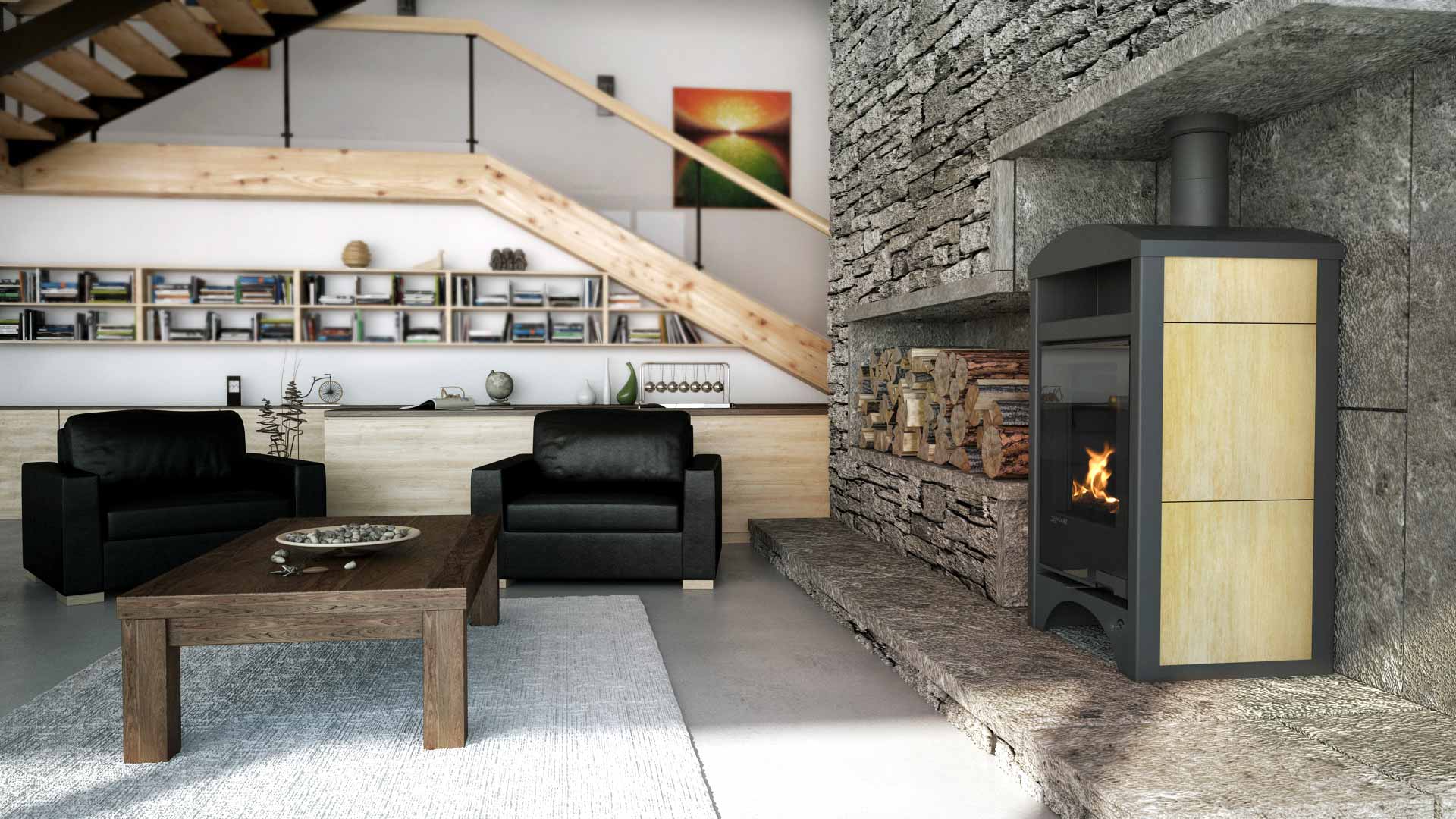

Barma - maple

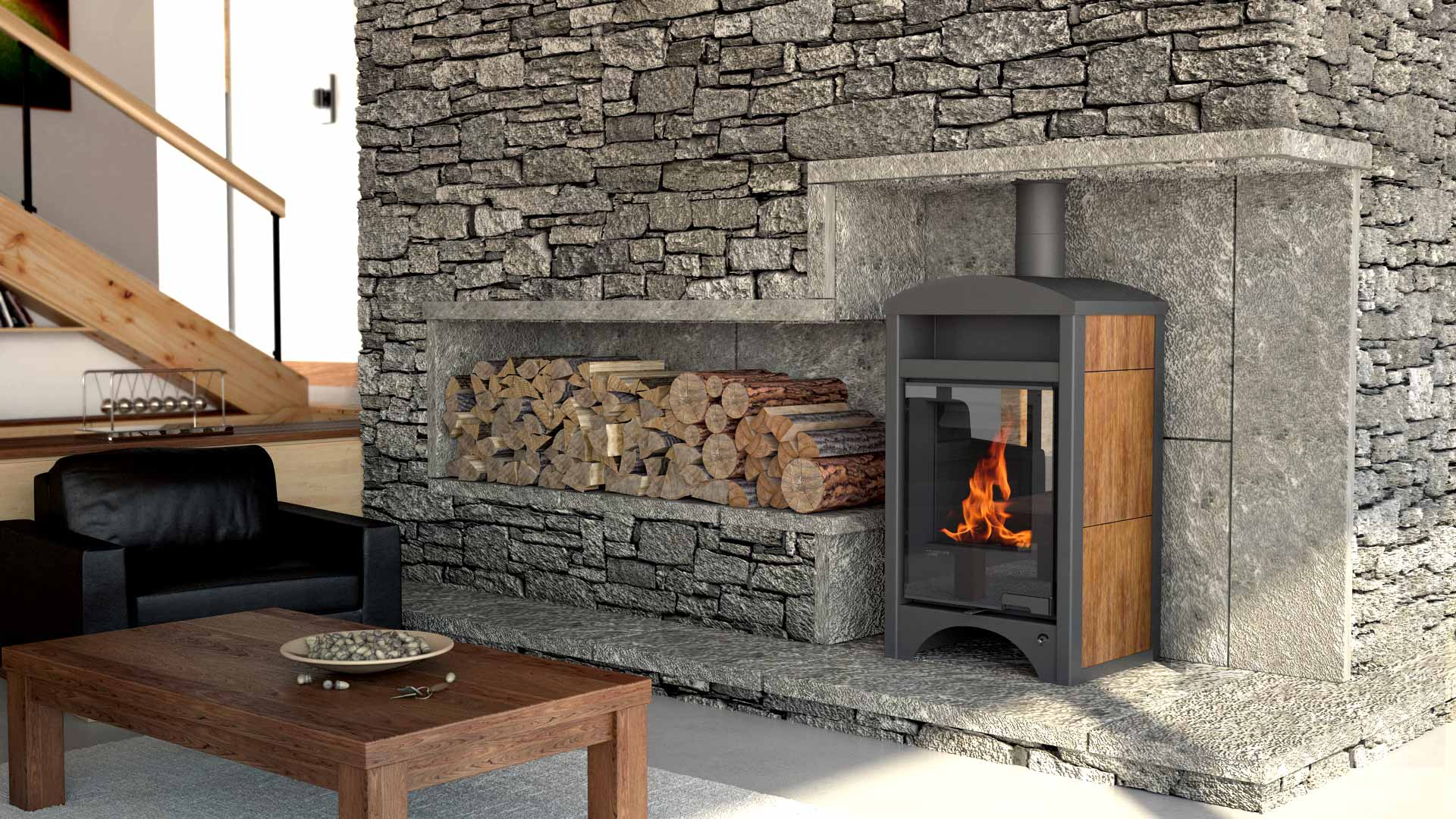

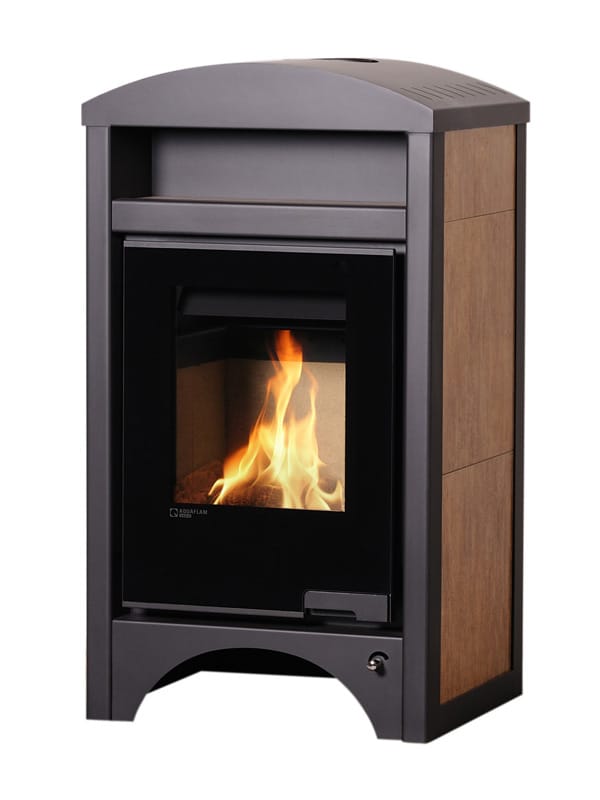

Barma - nut

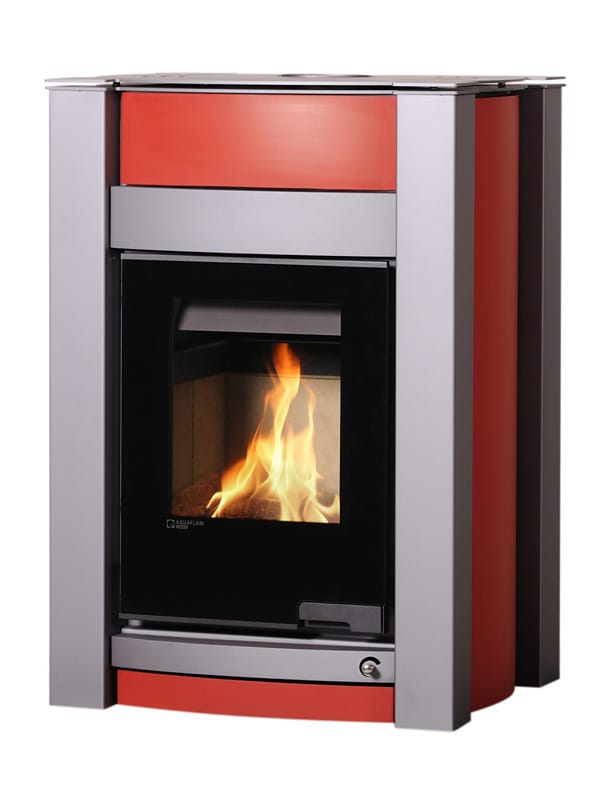

Kalmar - red

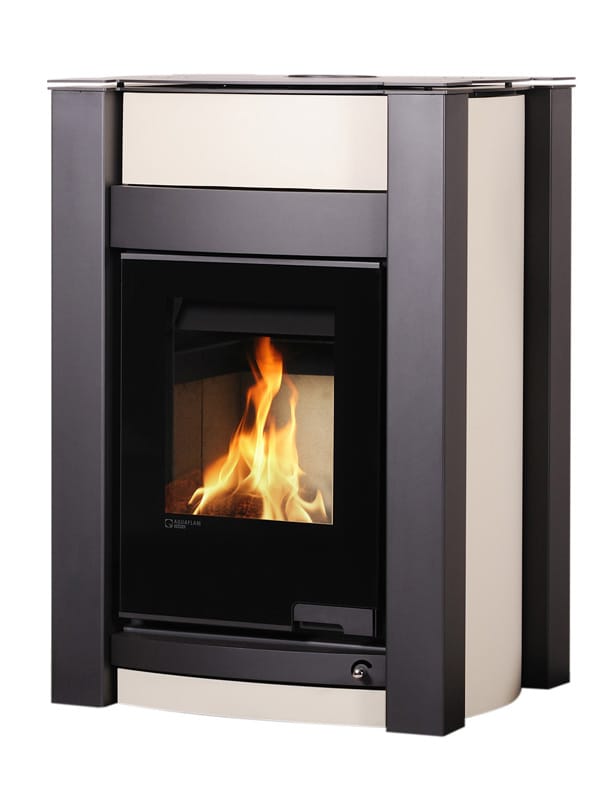

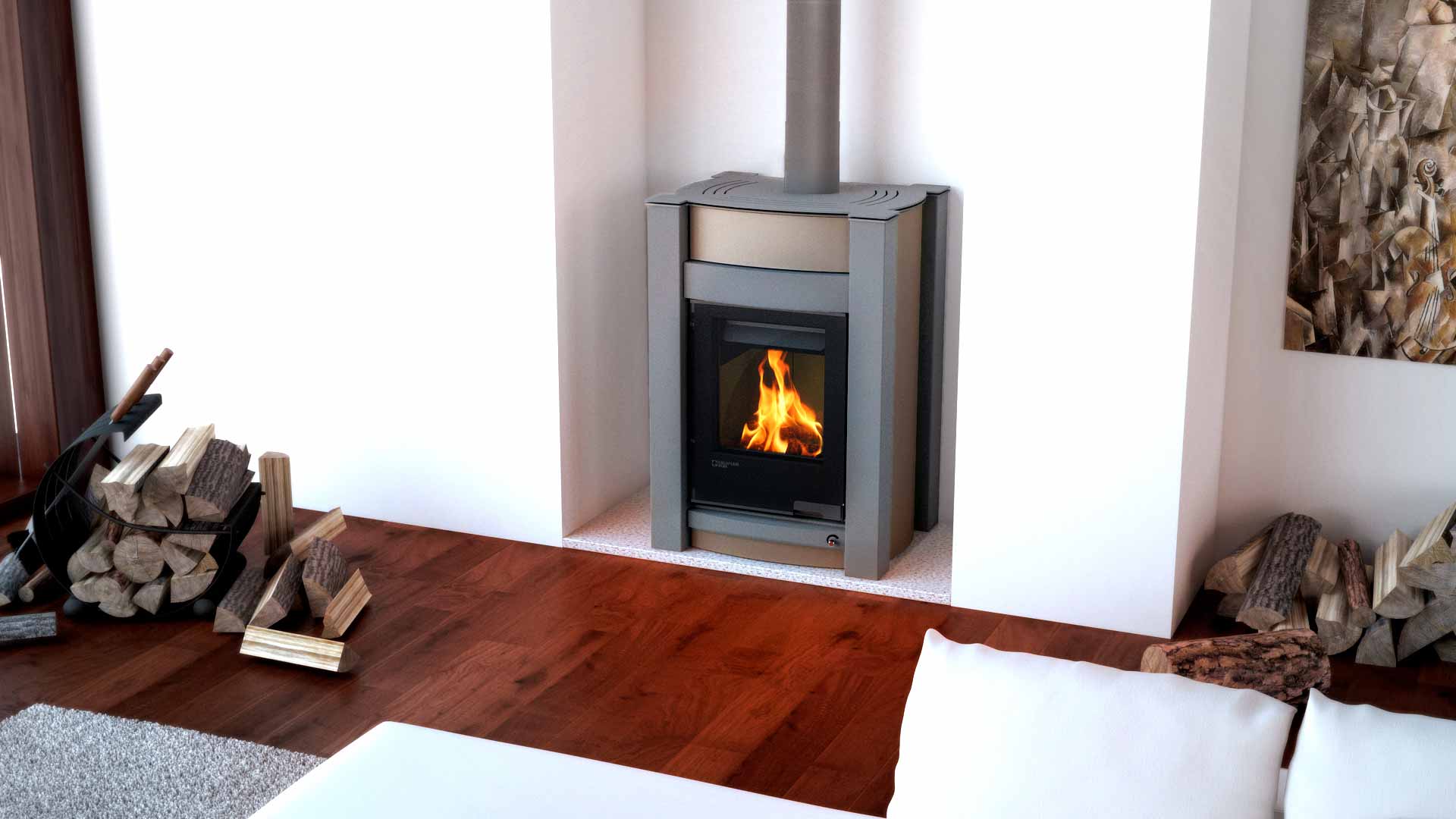

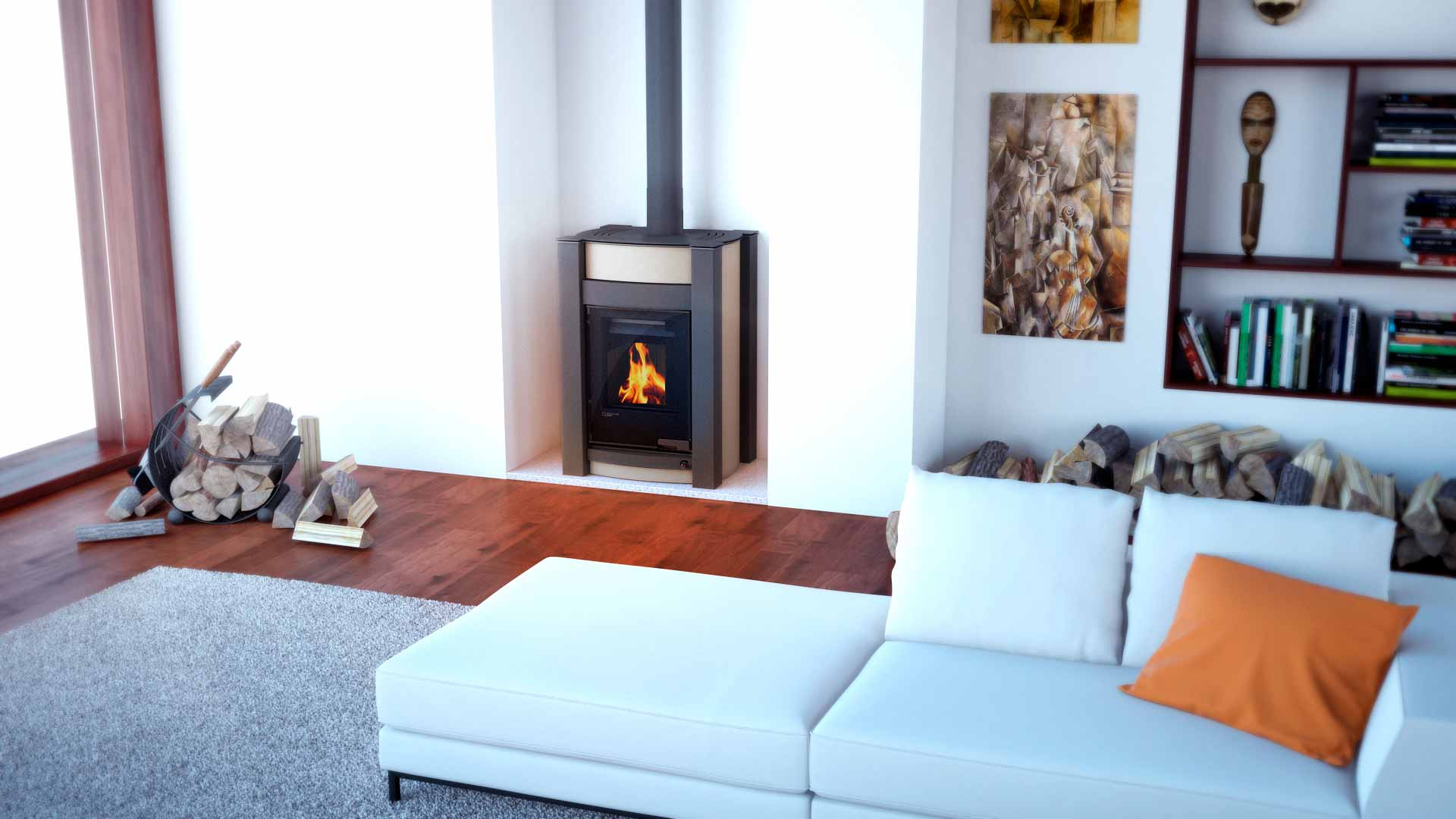

Kalmar - creamy
Kalmar - olive

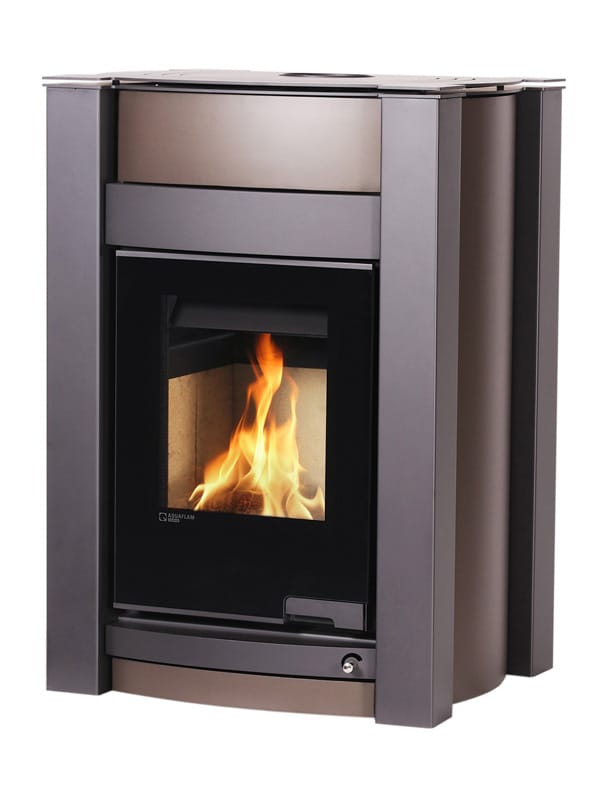

Kalmar - brown velvet

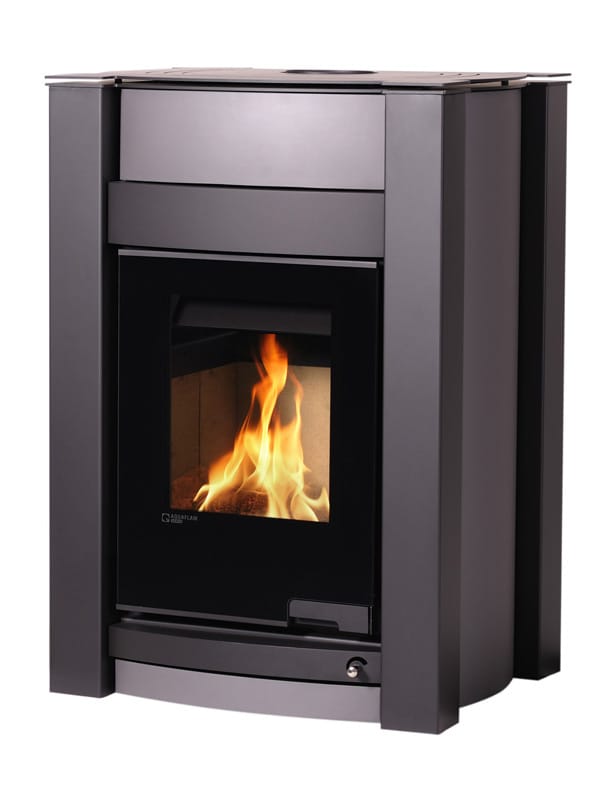

Kalmar - gray

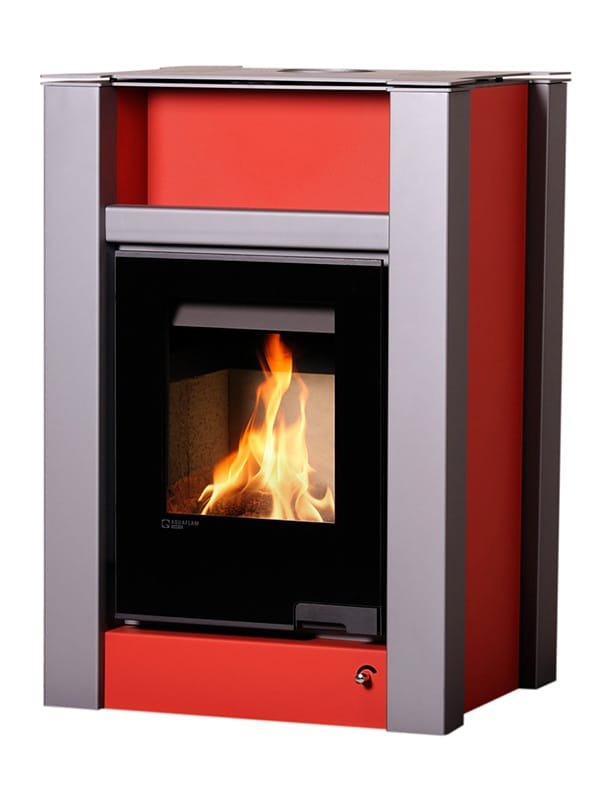

Lend - red

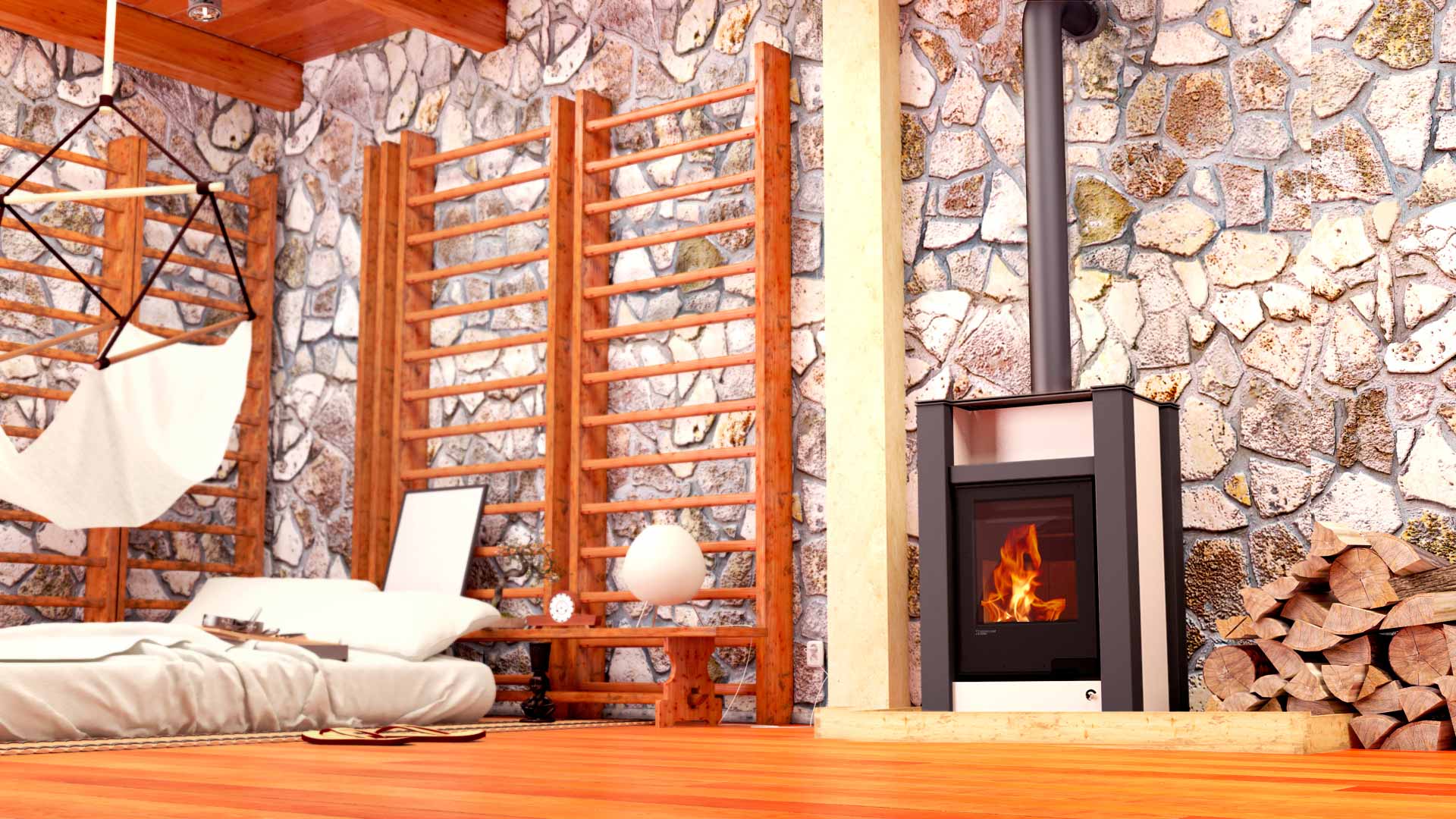

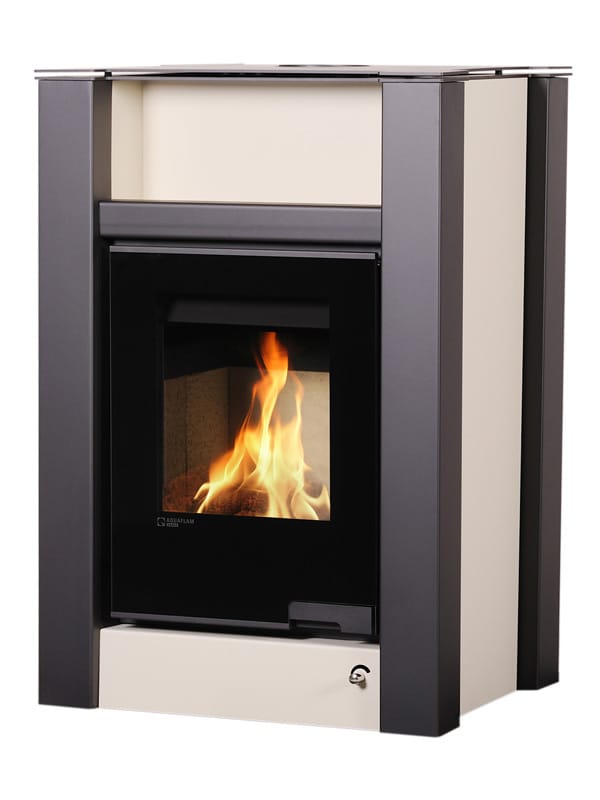

Lend - creamy
Lend - olive

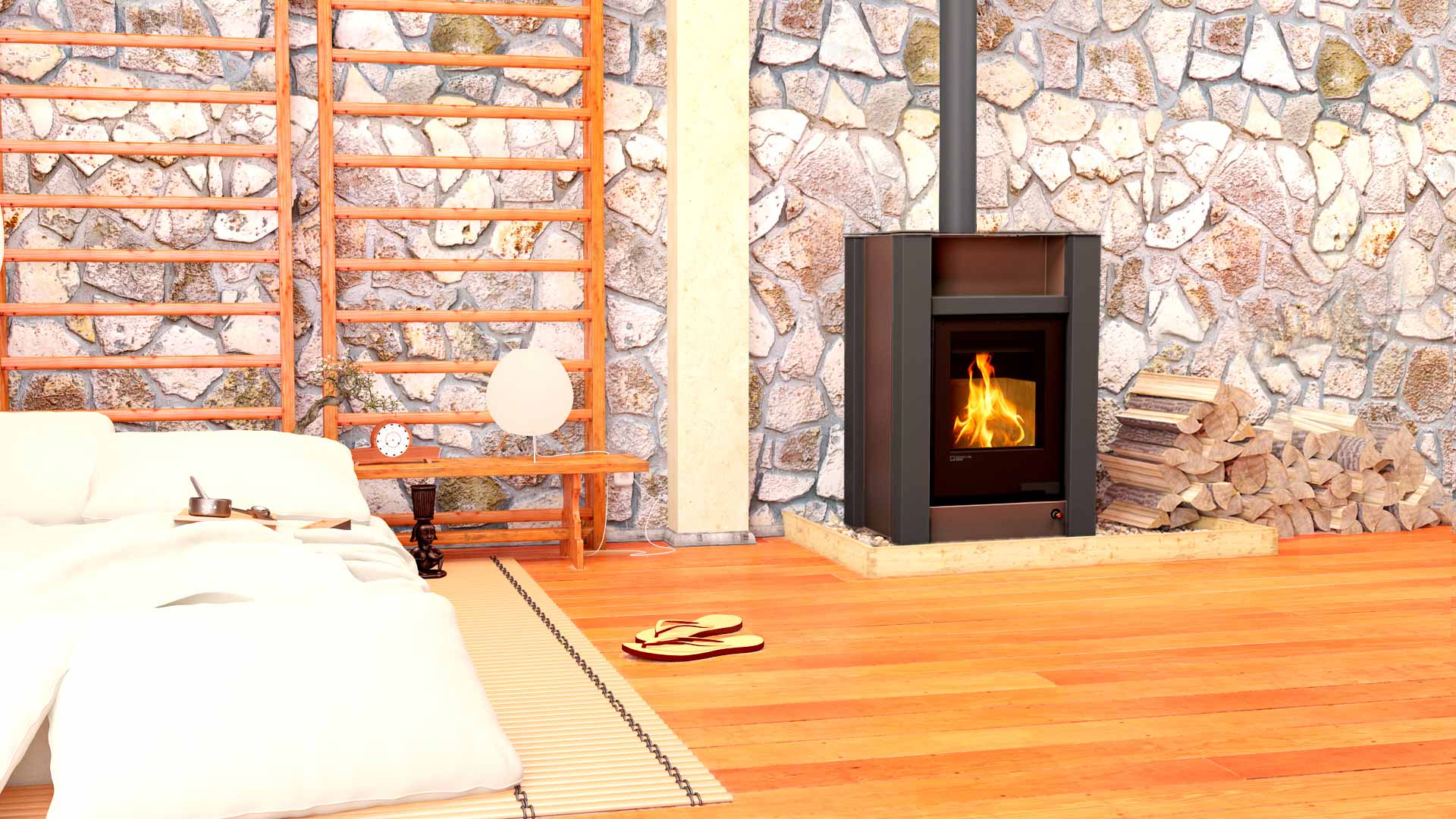

Lend - brown velvet

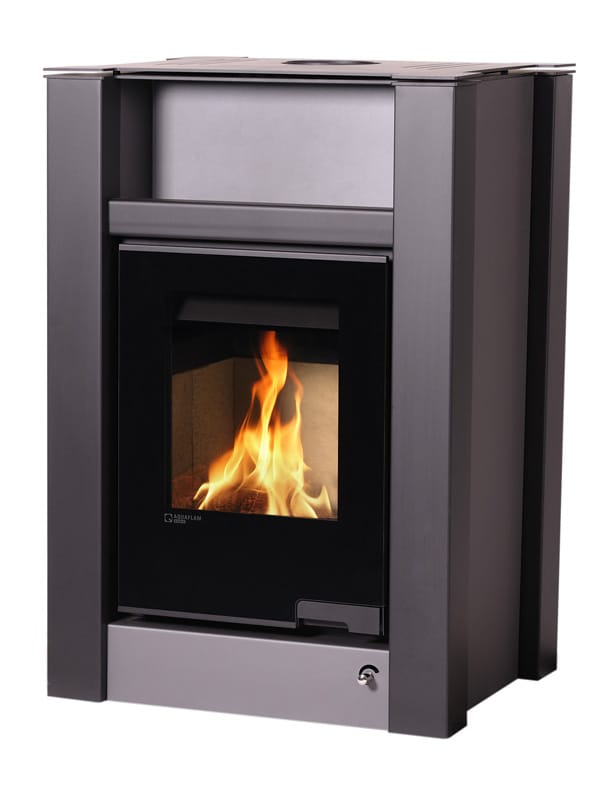

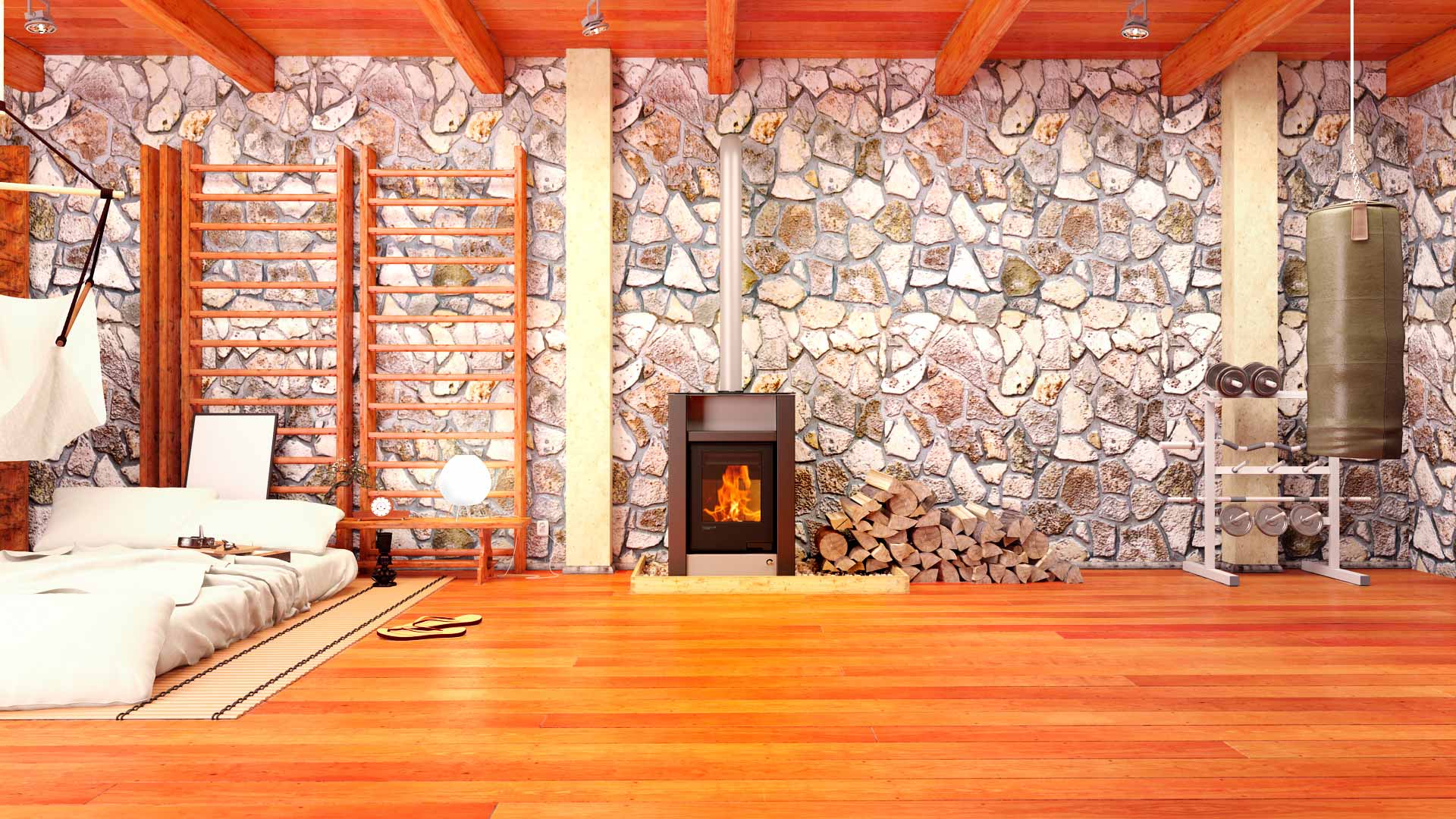

Lend - gray

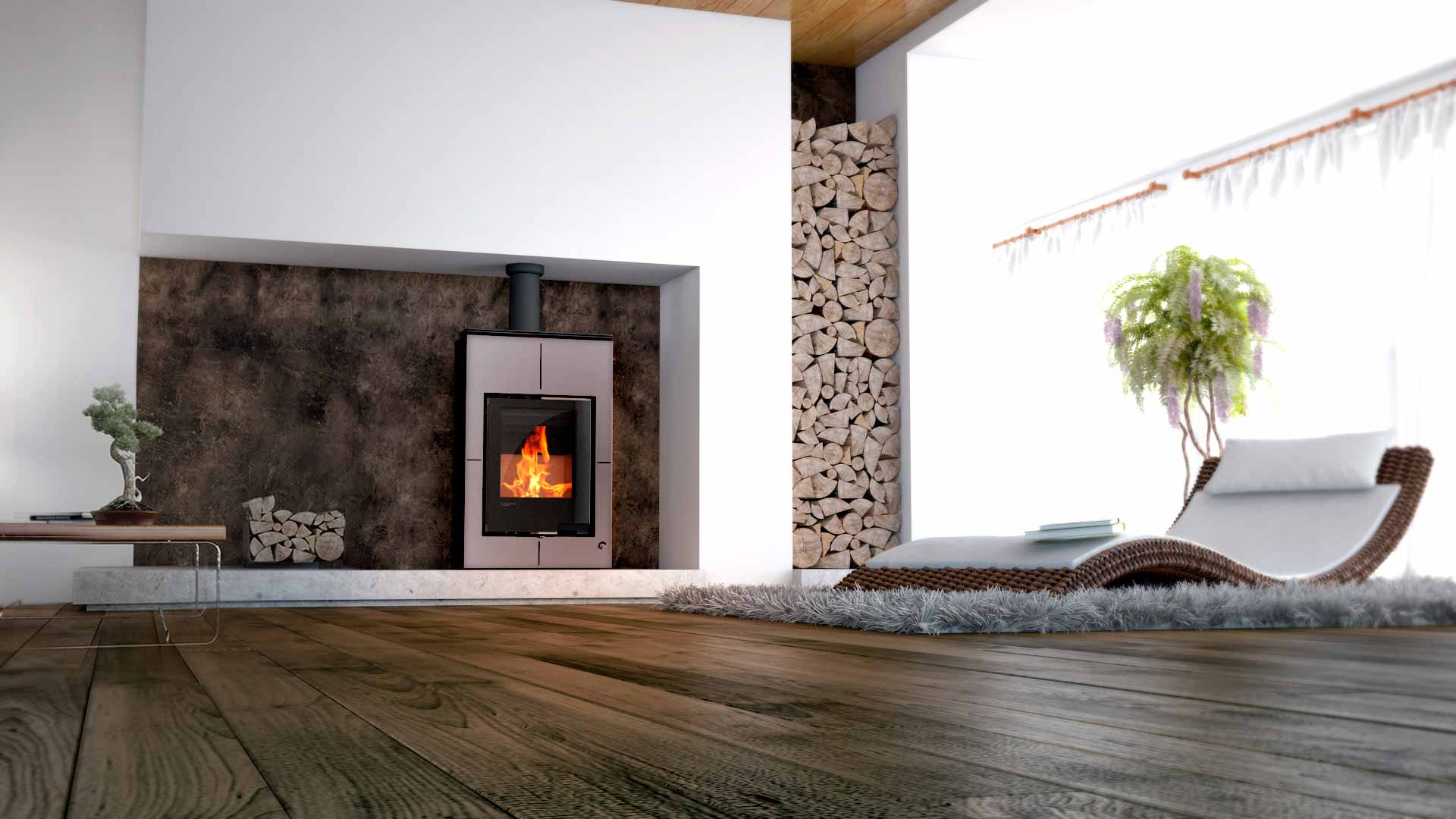

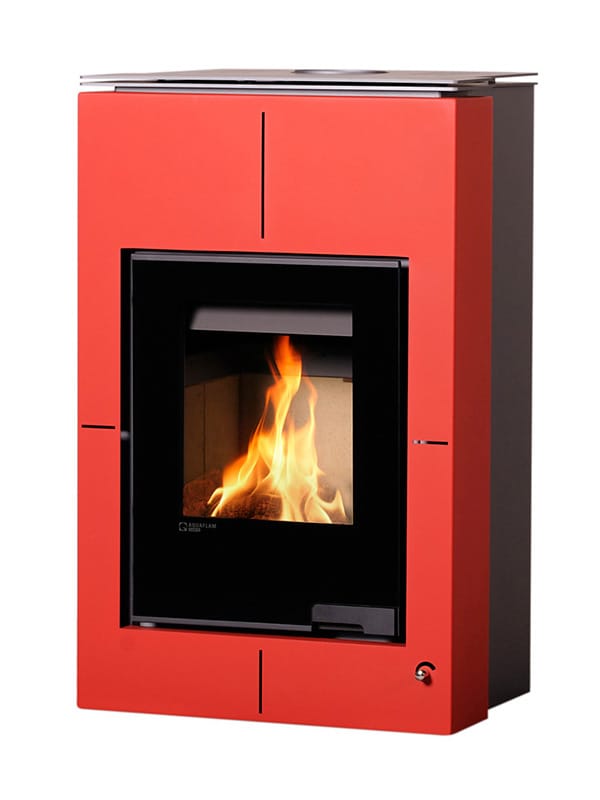

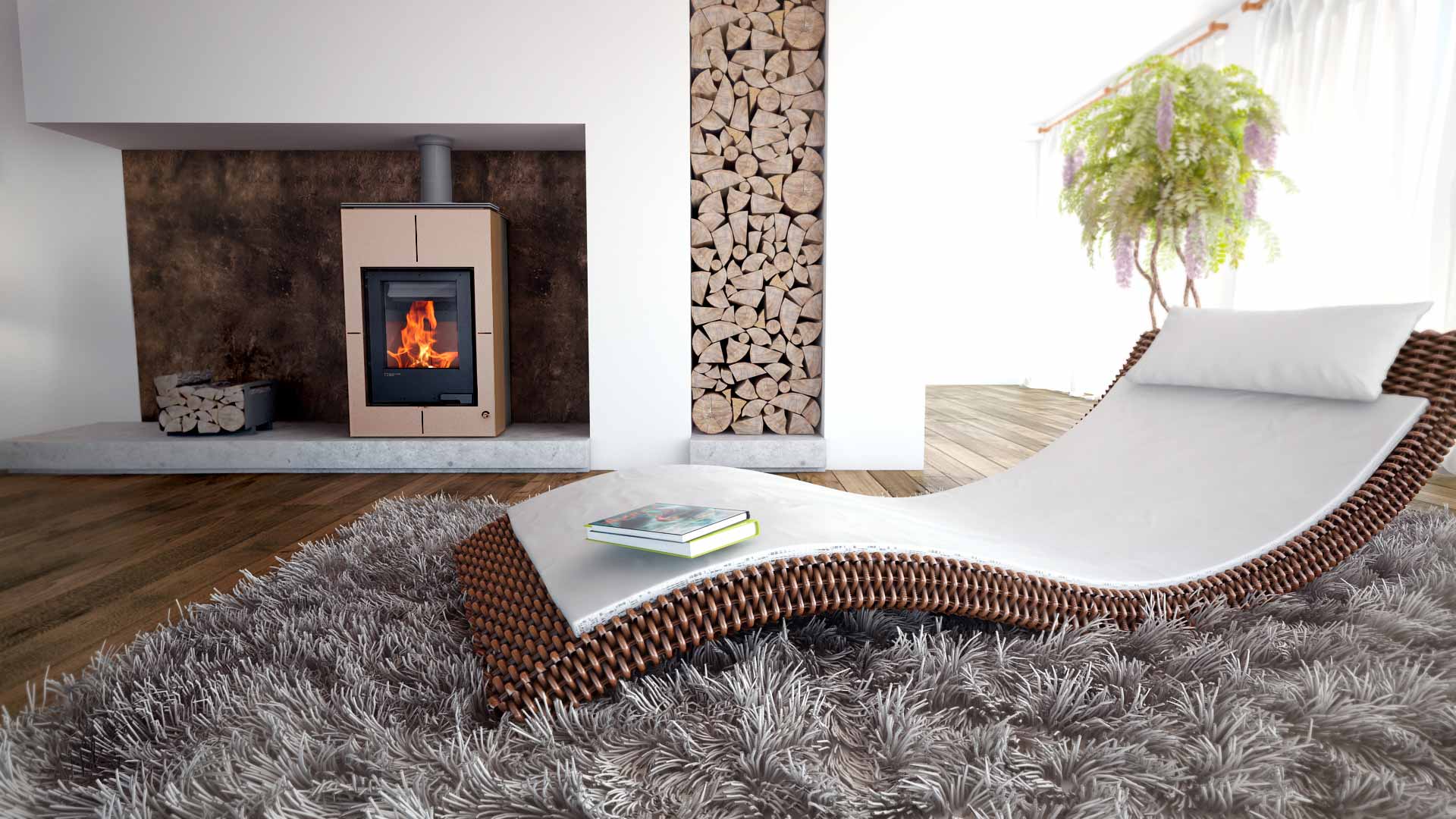

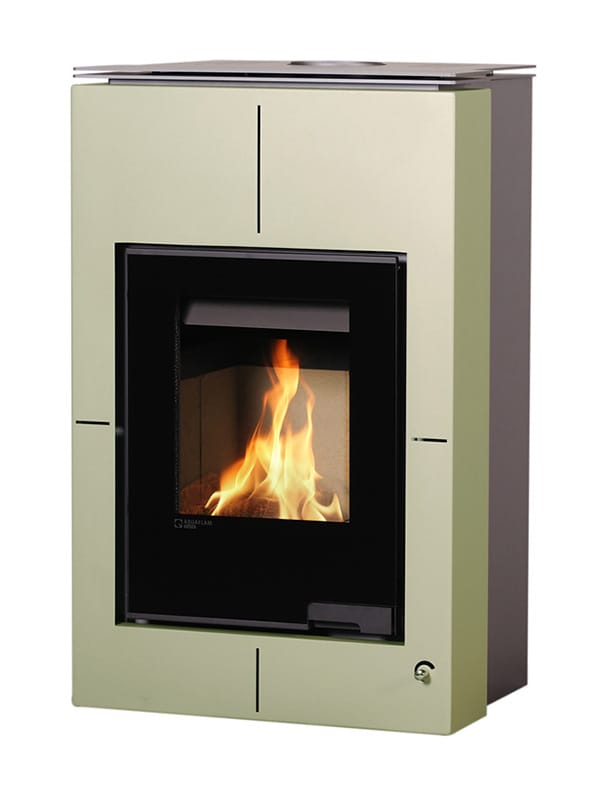

Saporo - red

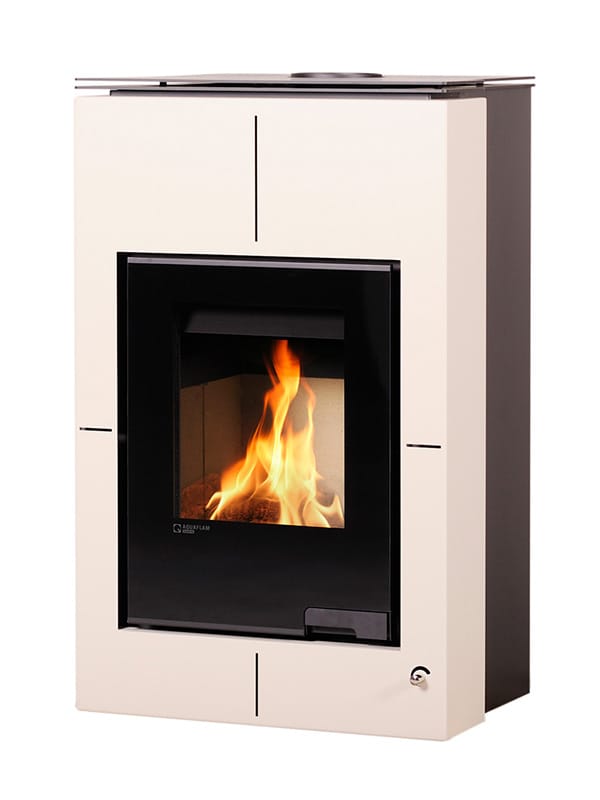

Saporo - creamy
Saporo - olive

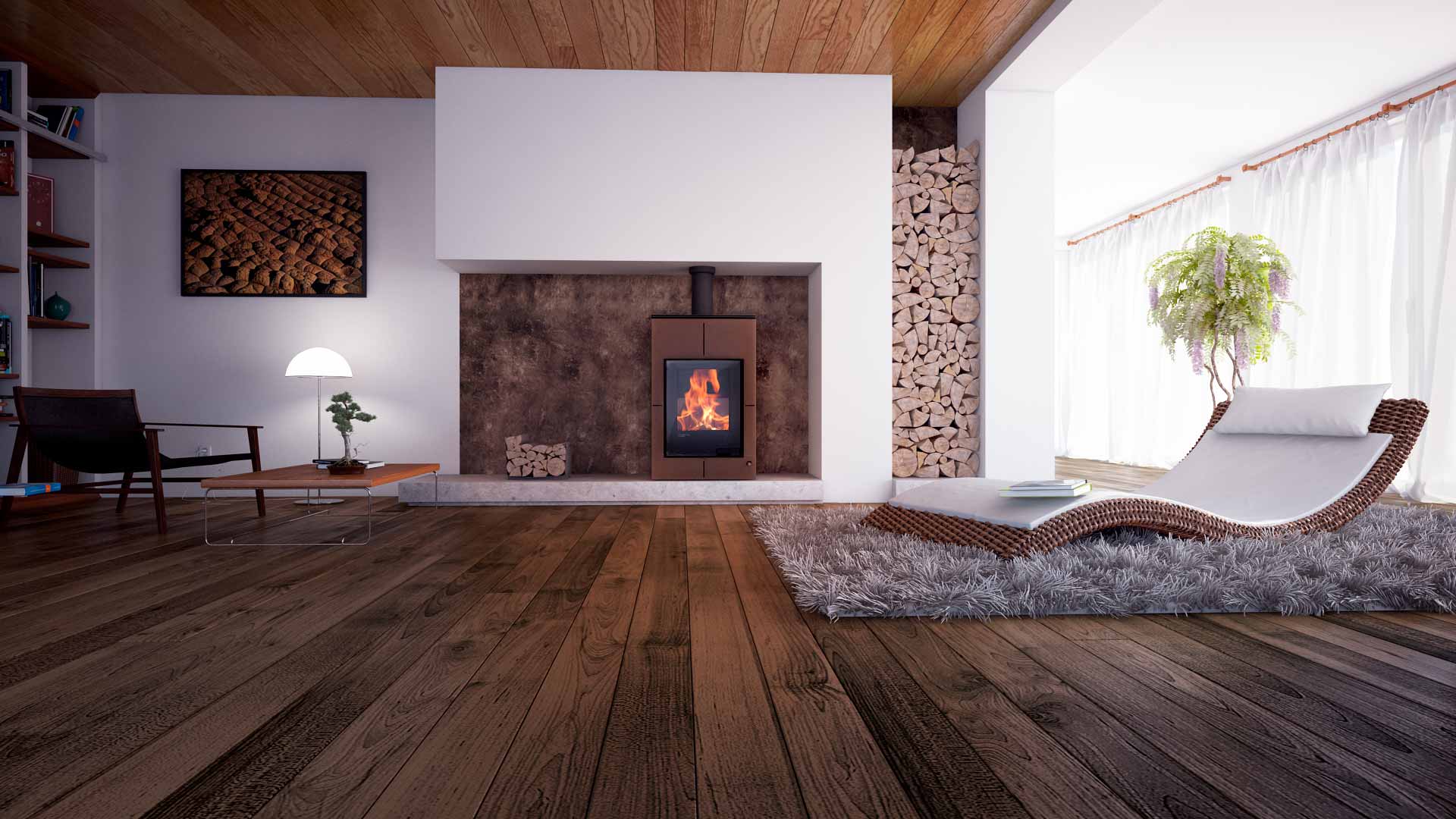

Saporo - brown velvet

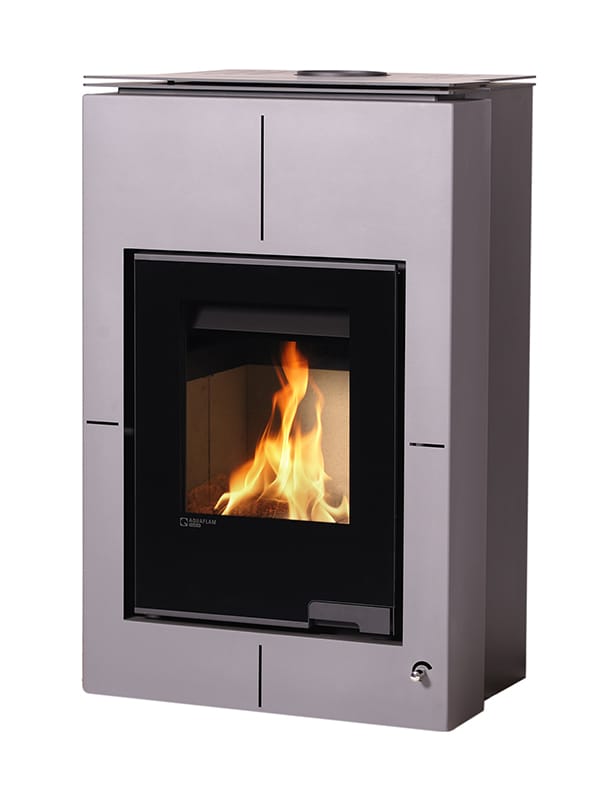

Saporo - gray
Double-walled convection stove with secondary combustion, which ensures perfect airwash of the glass. You can connect the stove to an external air supply. The chamber is constructed of fireclay parts and cast iron grate. The ashtray will make the maintenance easier before starting a fire and we will provide you with a 5-year warranty.

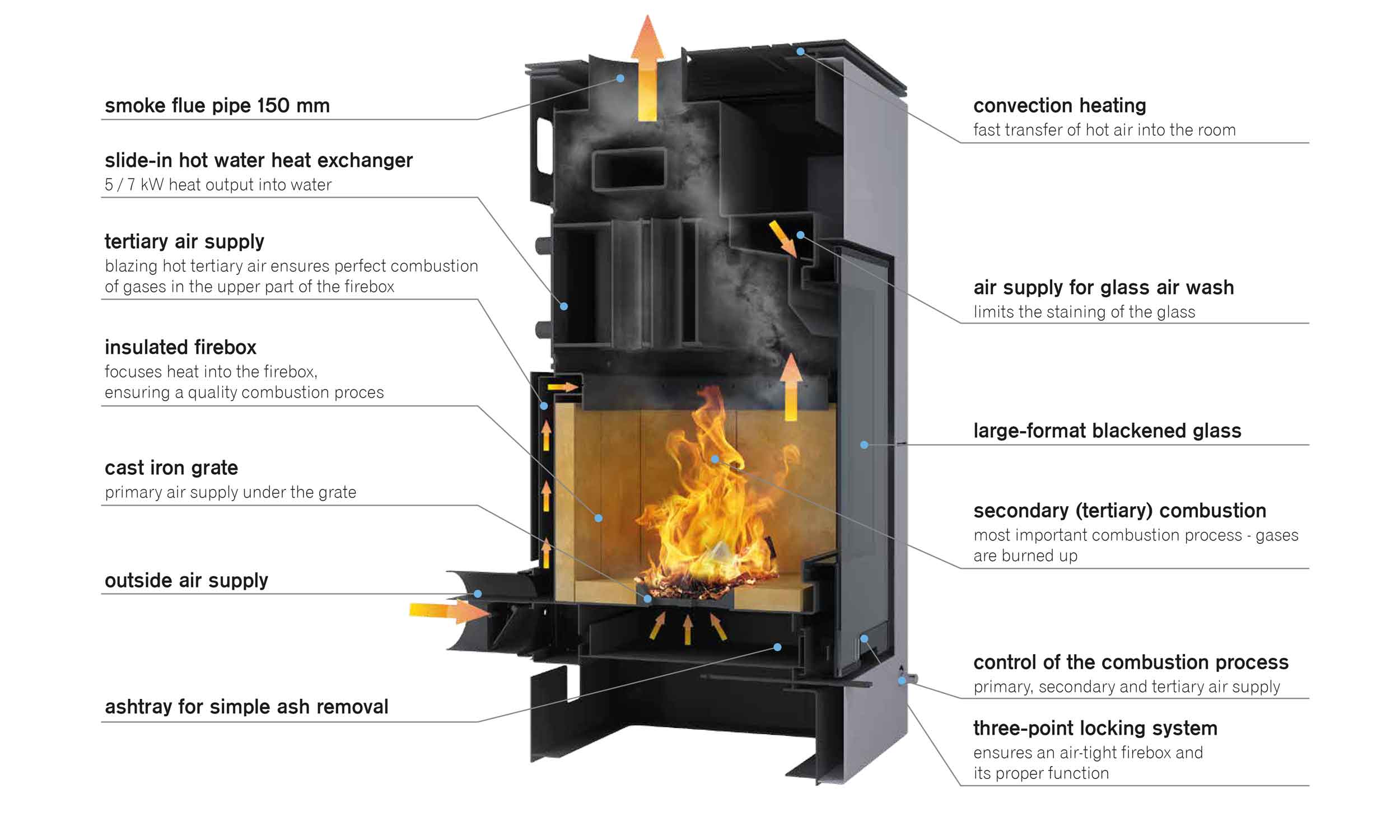

Aquaflam Vario - 3D cut
Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.
Parameters
| Rated power total [kW] | 11 | 11 | 11 |
| Rated power to water [kW] | 5 | 7 | - |
| Total power range [kW] | 7 – 15 | 7 – 15 | 7 – 15 |
| Power range to water [kW] | 3 – 9 | 5 – 11 | - |
| Fuel consumption [kg] | 3,2 | 3,4 | 3.0 |
| Stove efficiency [%] | 80,22 | 80,27 | 80,09 |
| Flue gas outlet [mm] | 150 | 150 | 150 |
| Log Length [cm] | 40 | 40 | 40 |
| Calorific value [m3 / hour] | 140 – 300 | 140 – 300 | 140 – 300 |
| CO emissions (at 13% O2) [%] | 0,096 | 0,093 | 0,094 |
| Average flue gas temperature [° C] | 273 | 267 | 293 |
| Heat exchanger volume [l] | 10,2 | 8.7 | - |
| Max. operating pressure [bar] | 2,5 | 2,5 | - |
| Warranty | 5 years | 5 years | 5 years |
| Meets standards | EN 13240, BlmSchV - Stufe 2, Ekodesign | ||
