Boiler stoves Aquaflam®
Gallery
Design

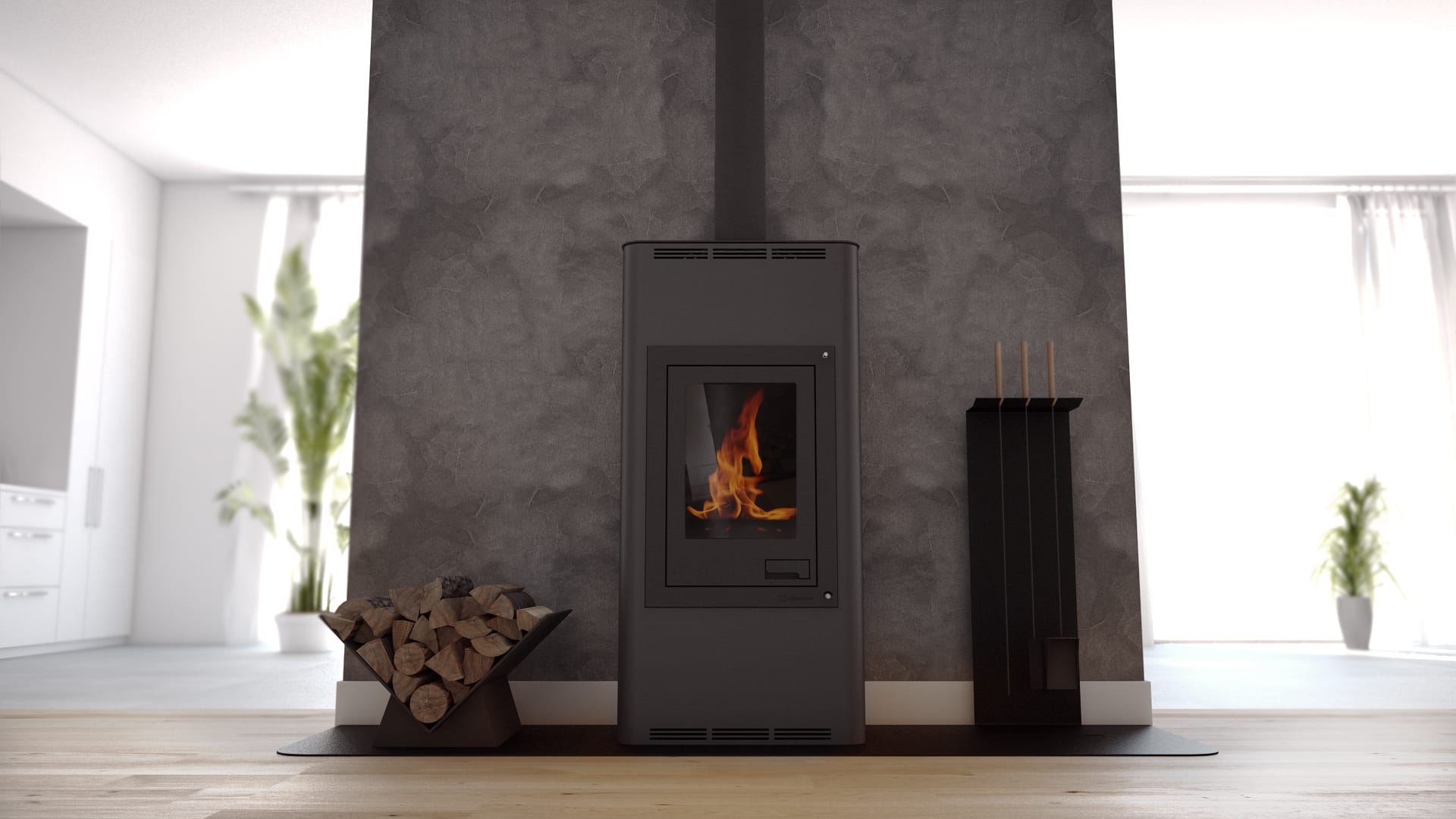

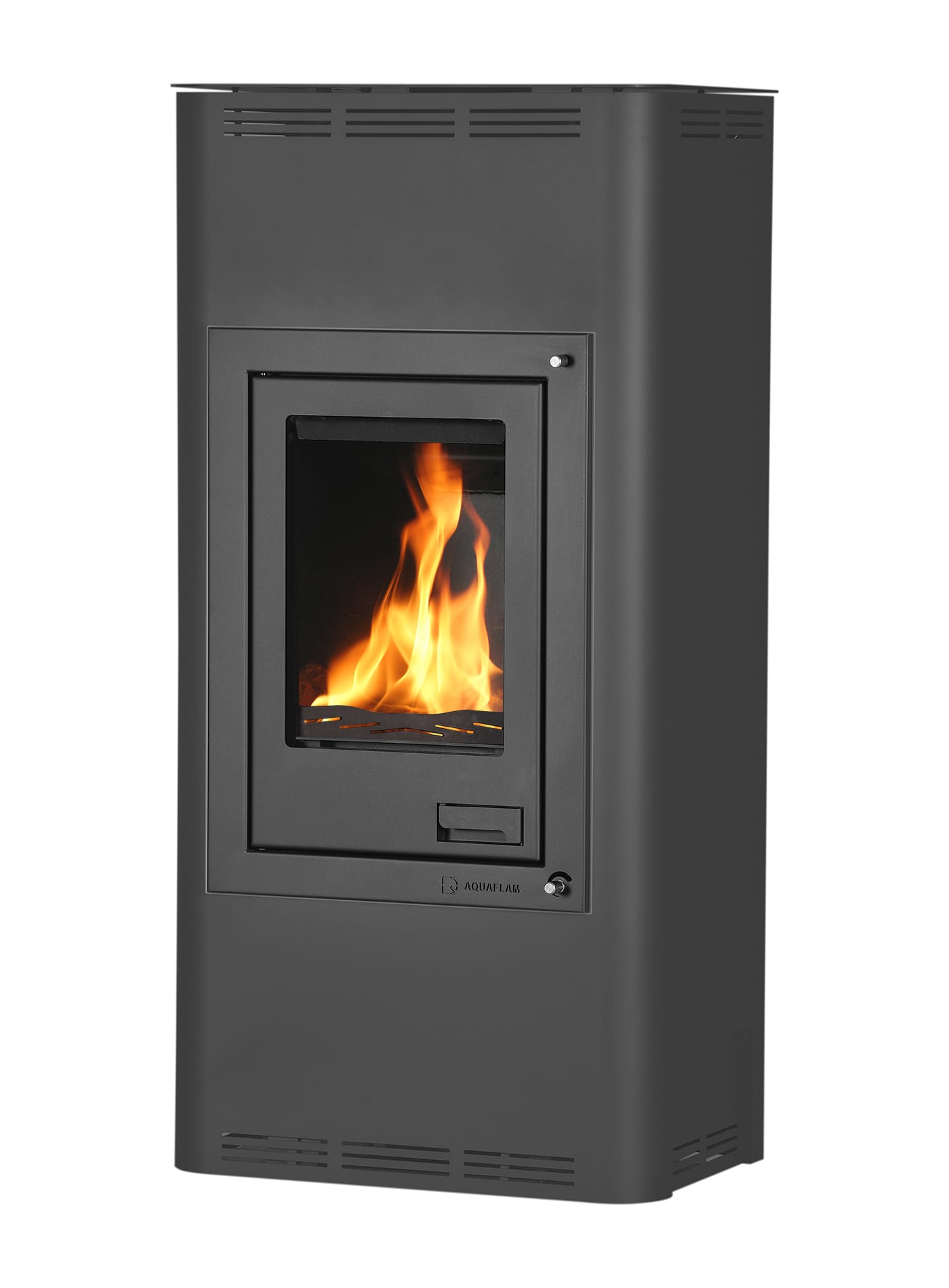

7 a 12 kW, black

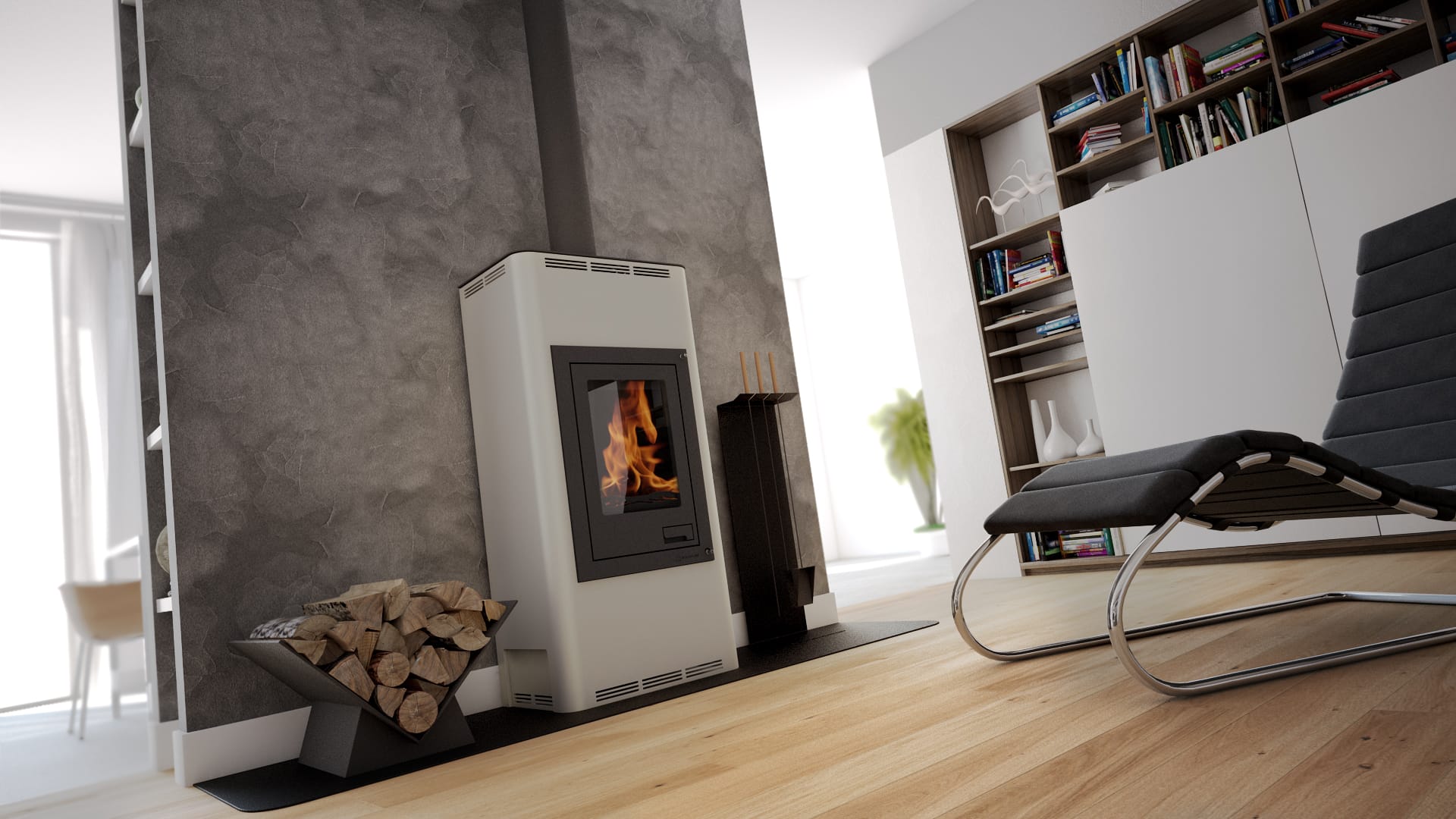

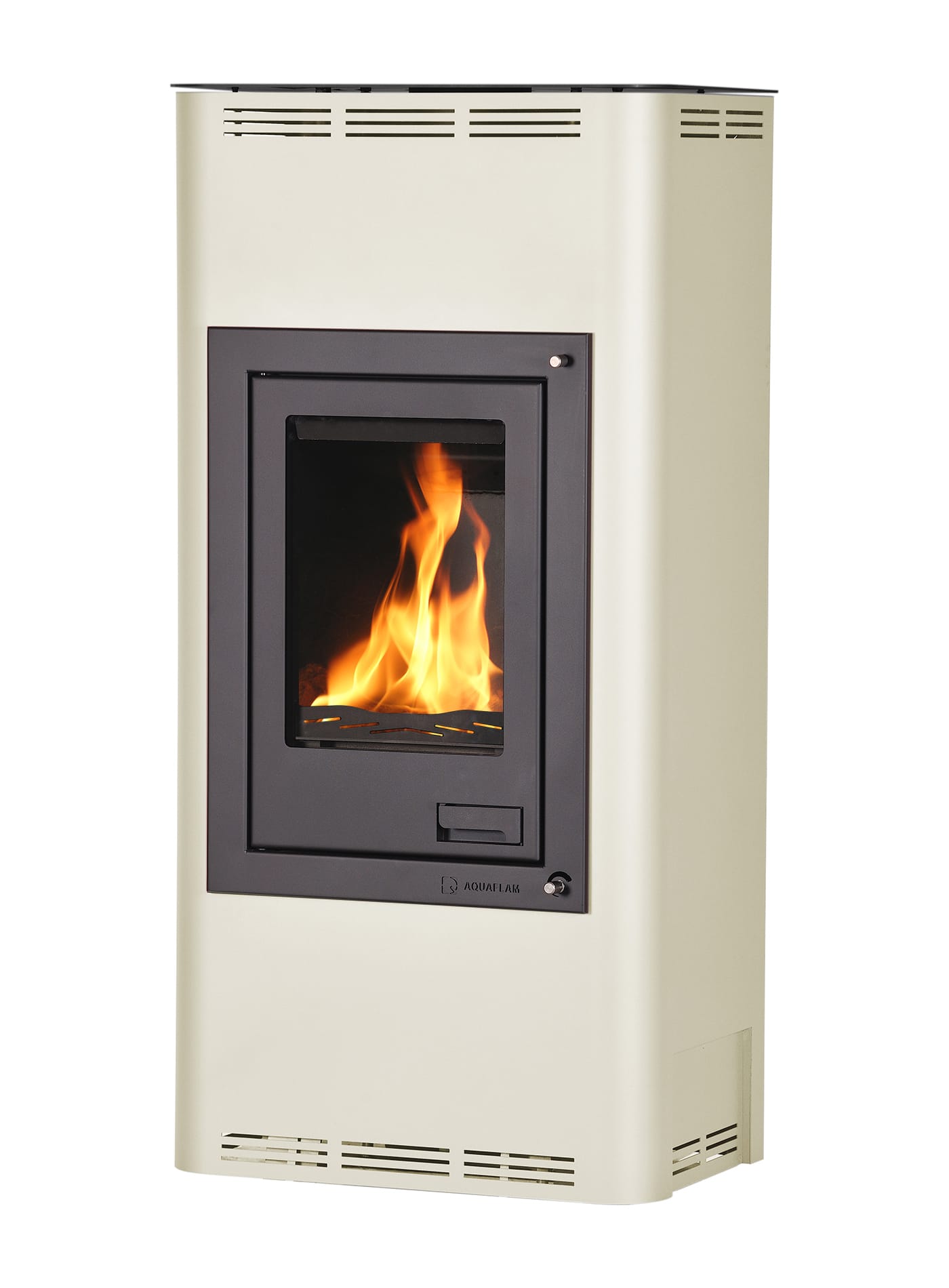

7 a 12 kW, creamy

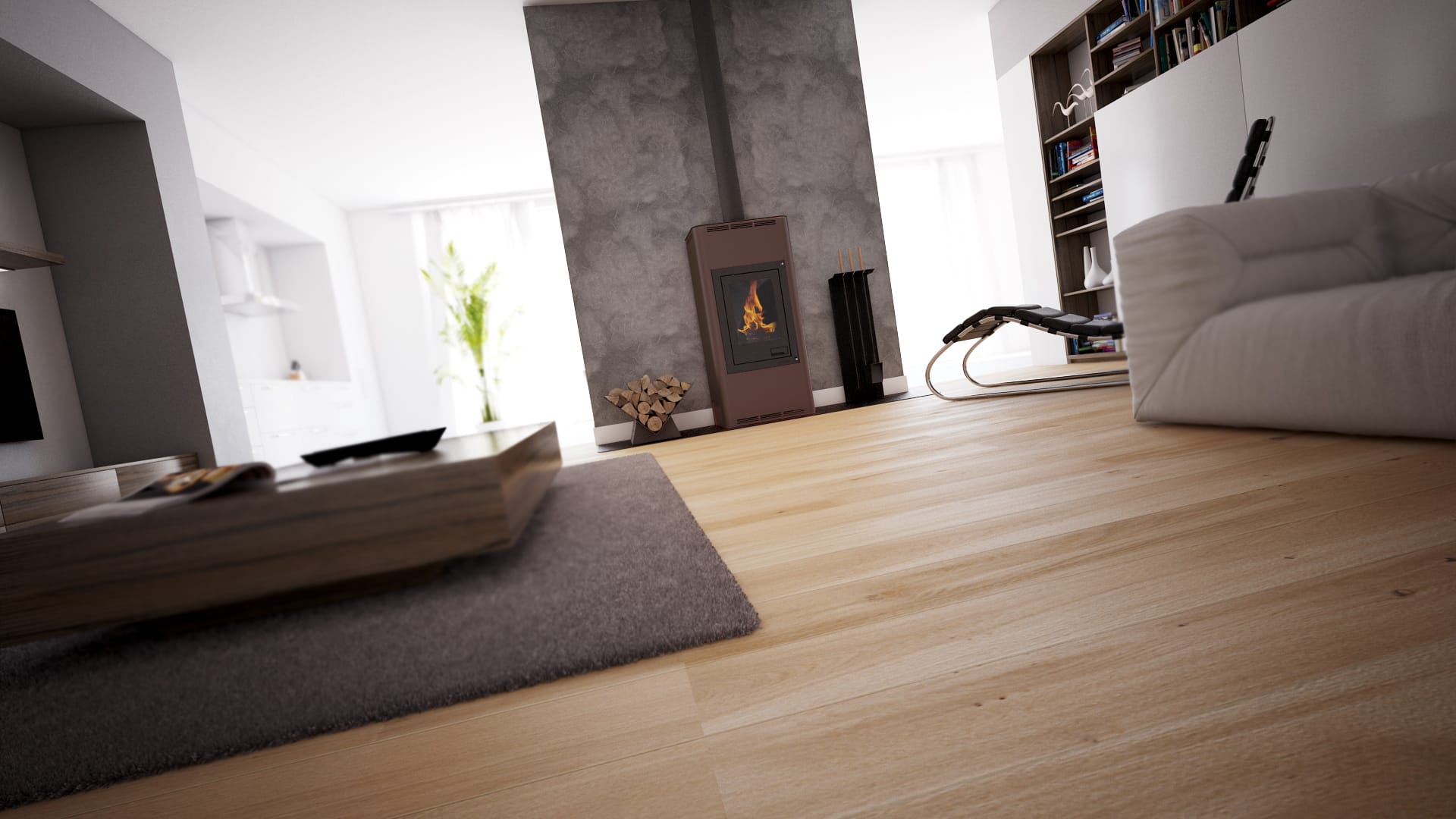

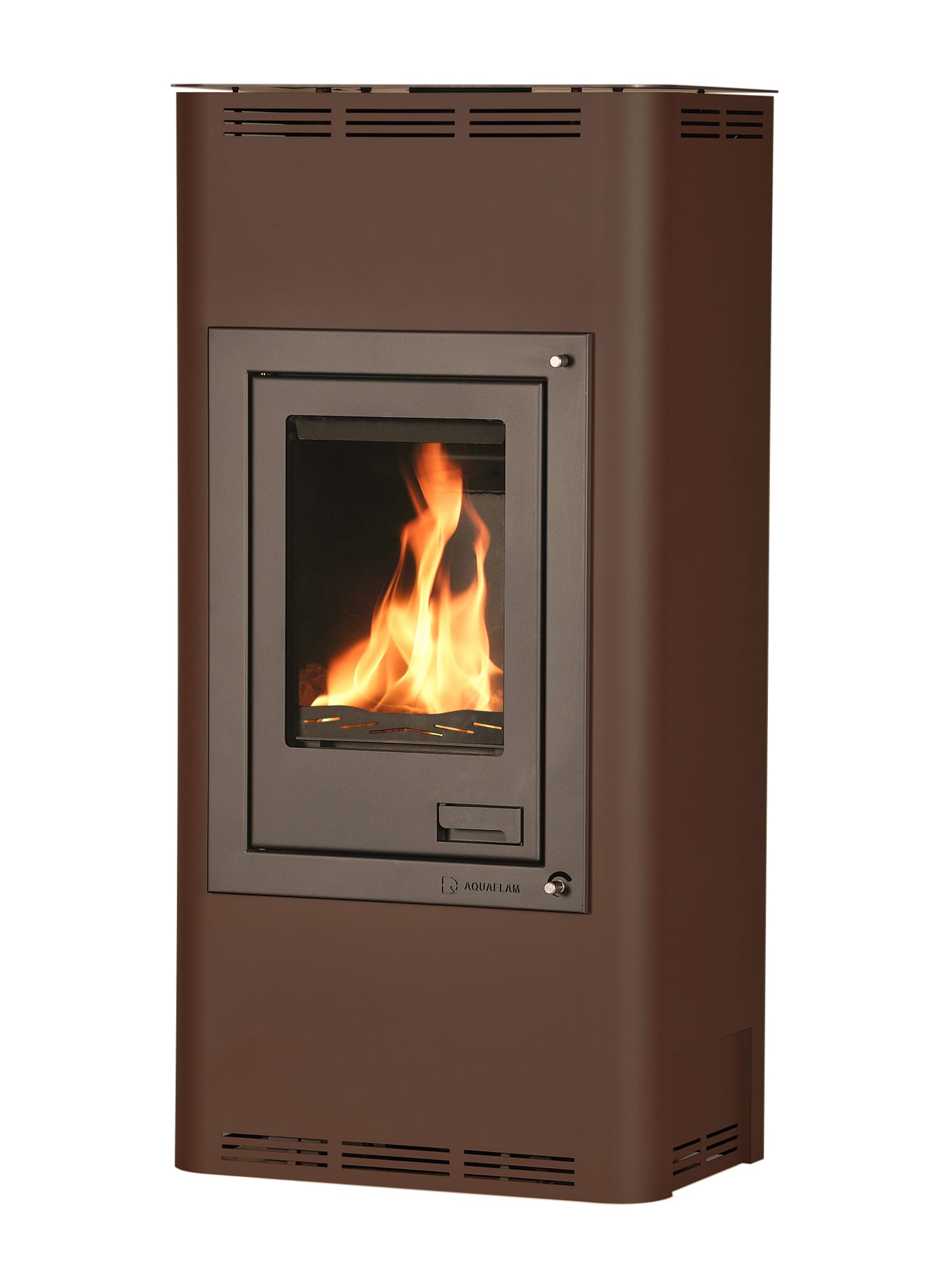

7 a 12 kW, brown velvet

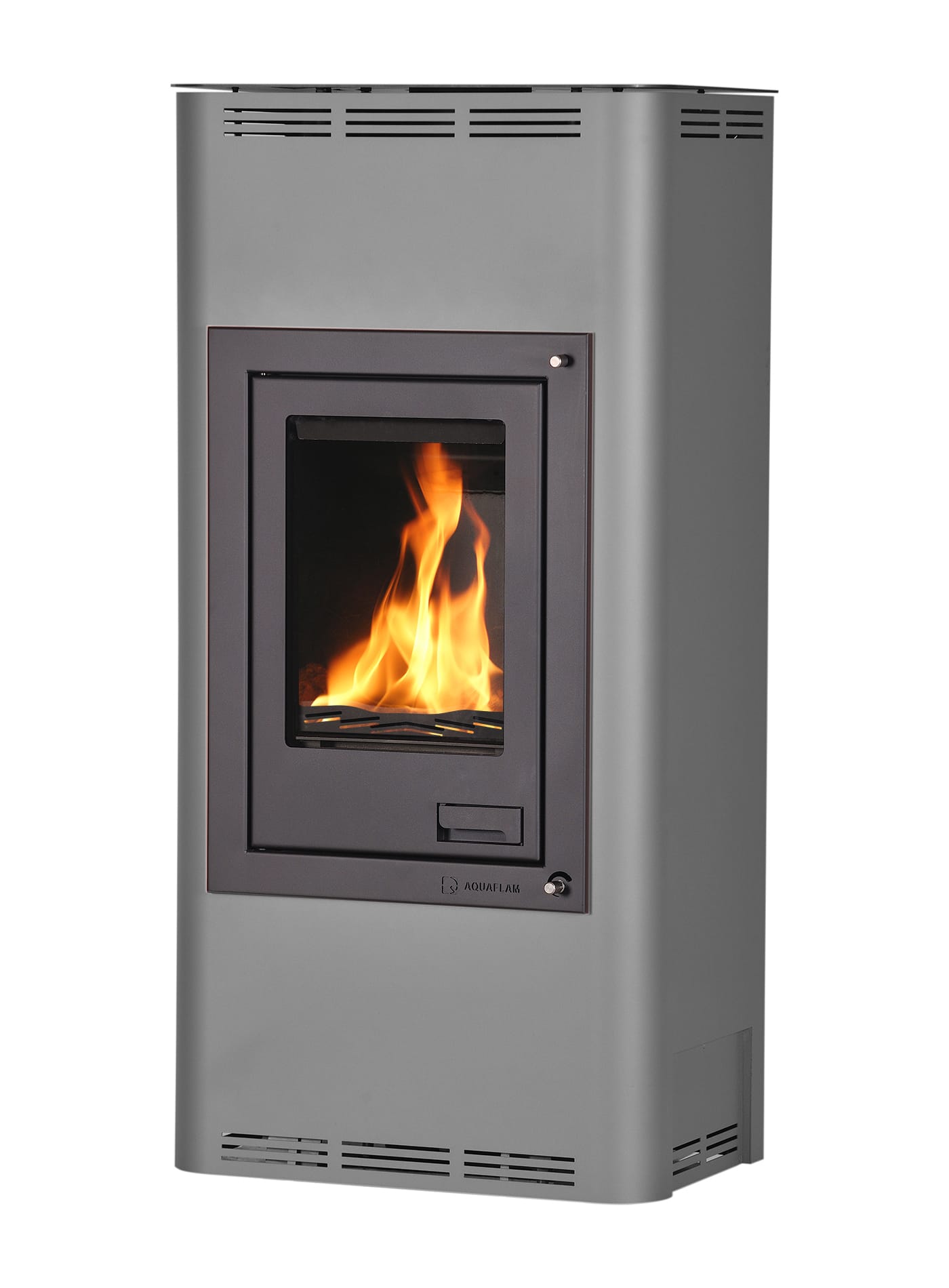

7 a 12 kW, gray

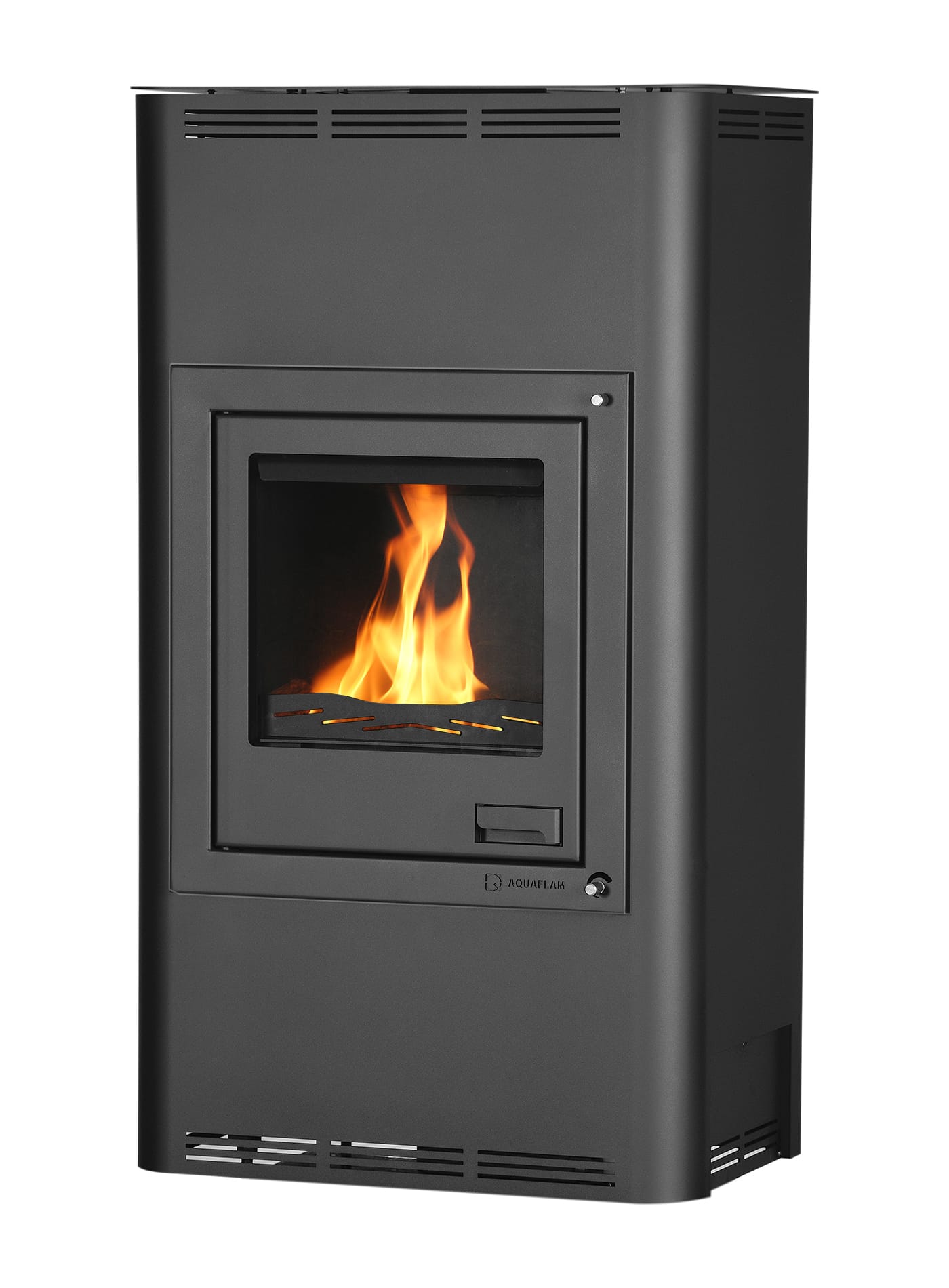

17 kW, black

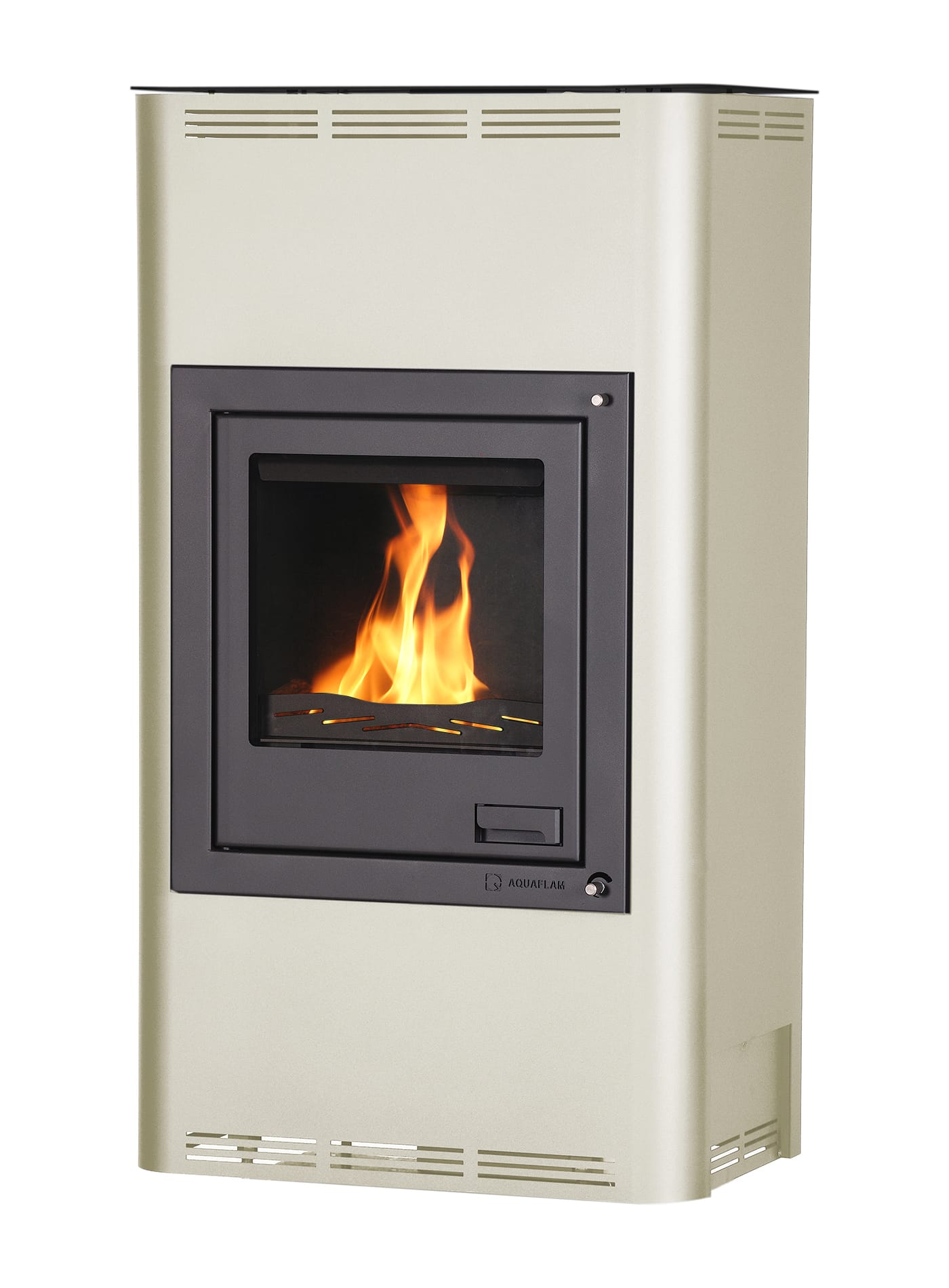

17 kW, creamy

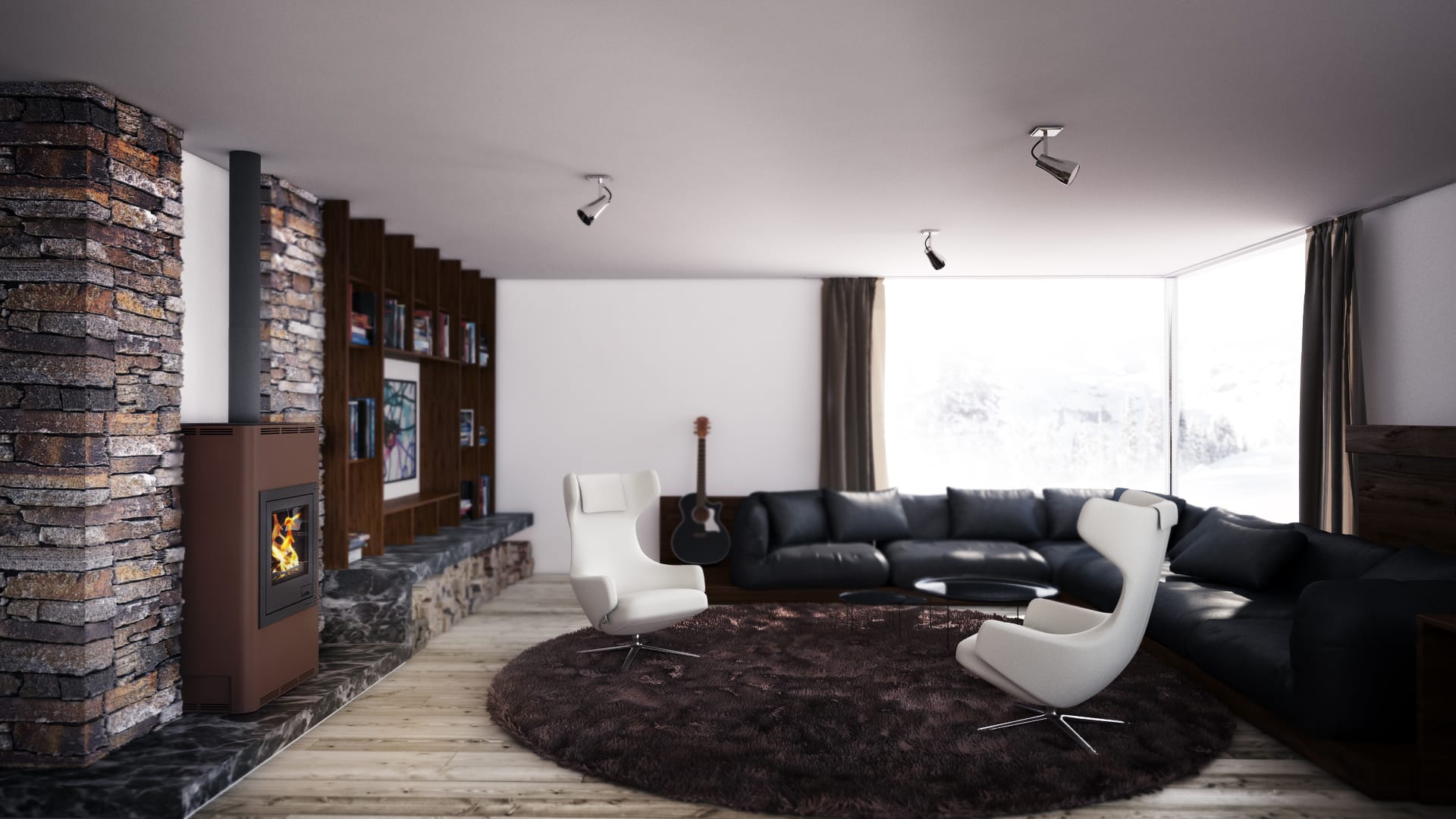

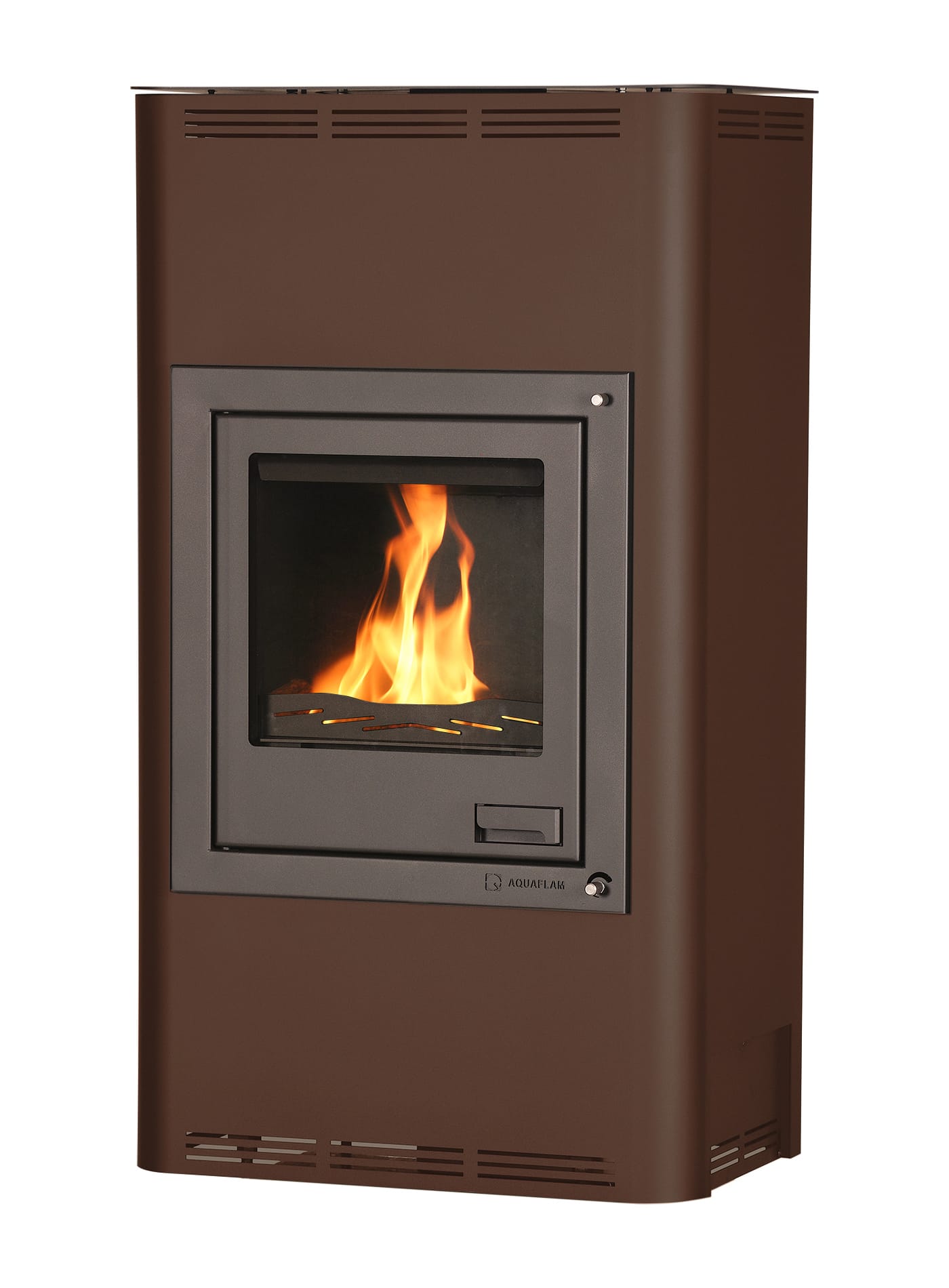

17 kW, brown velvet

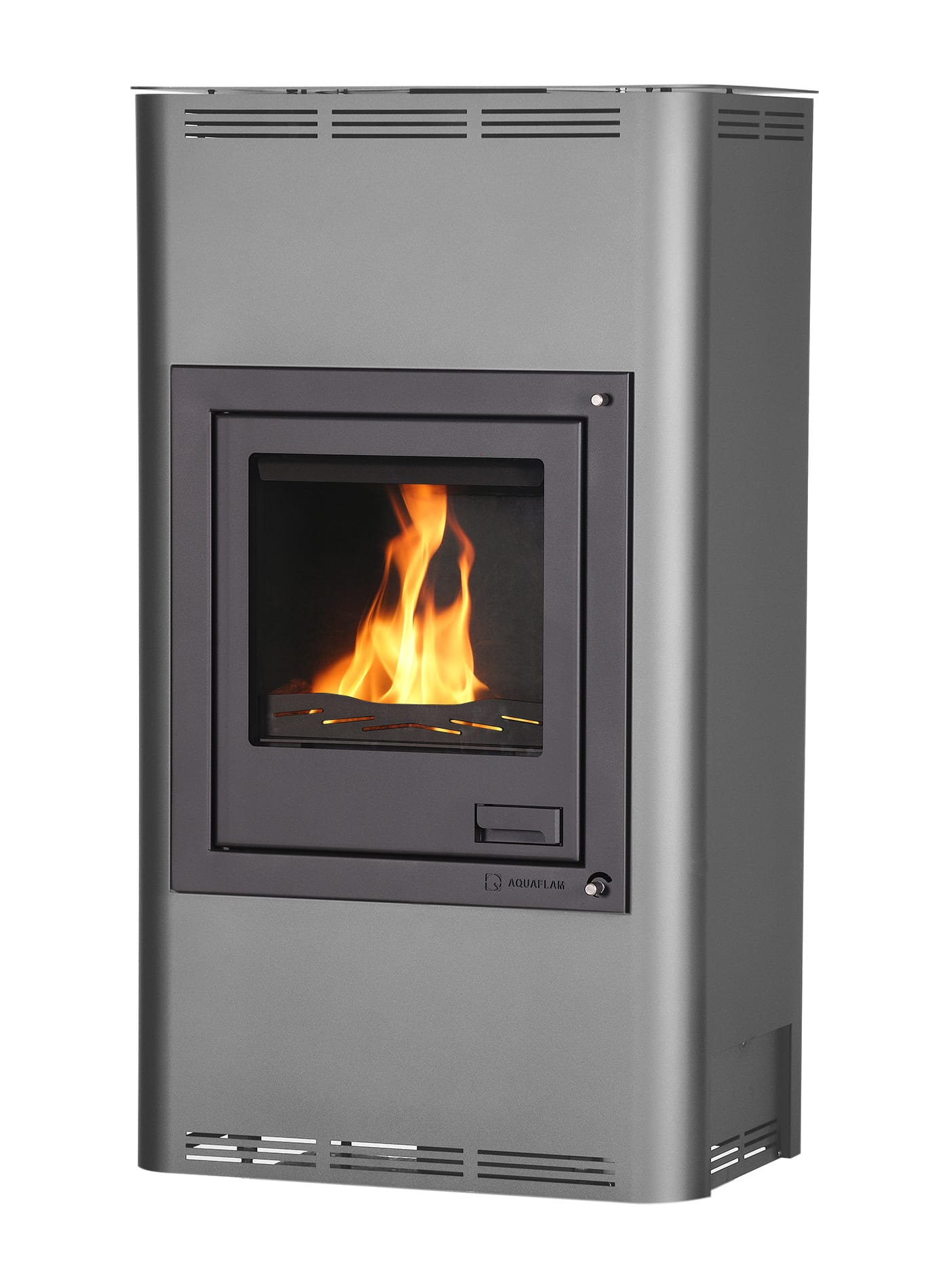

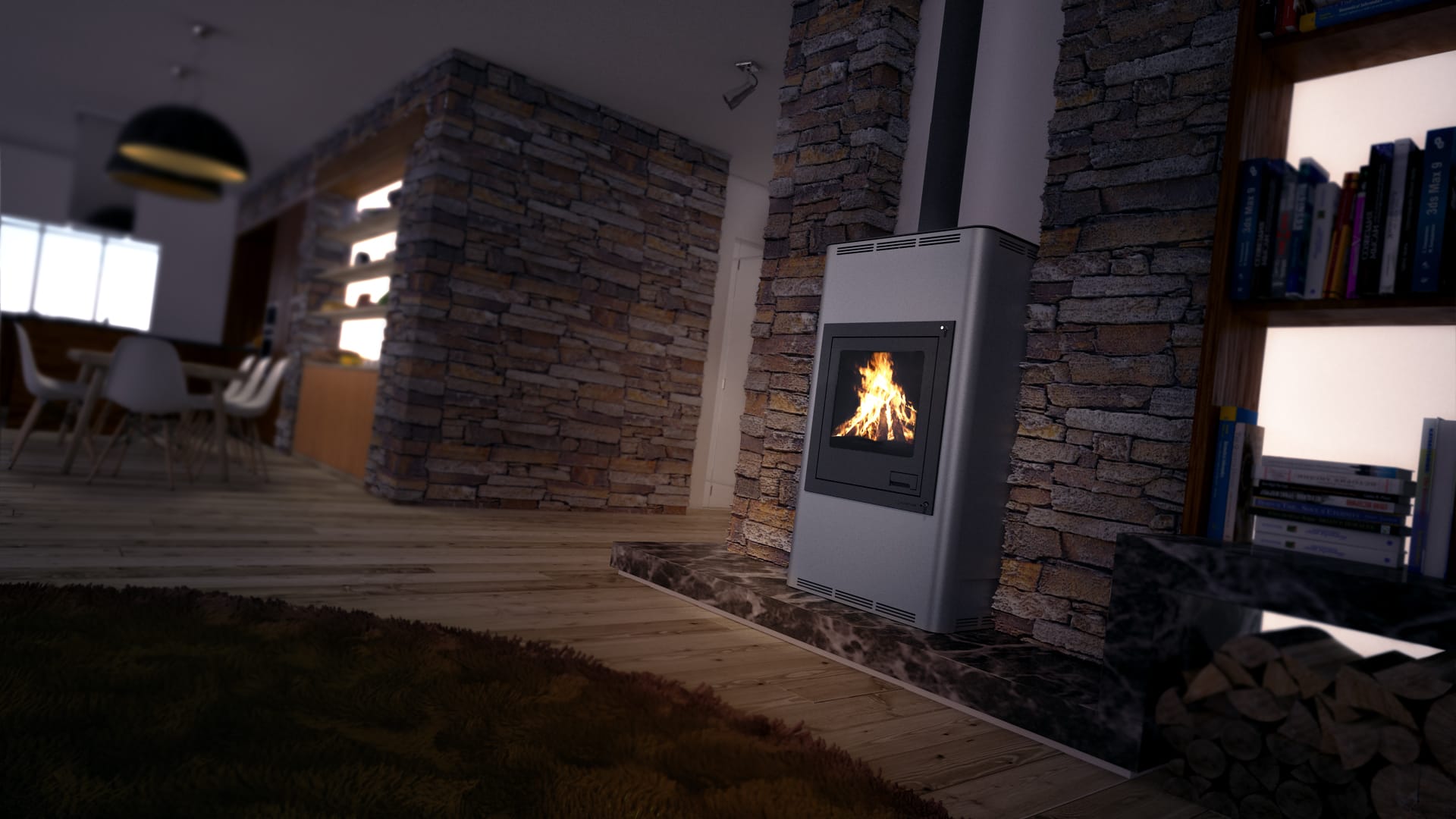

17 kW, gray

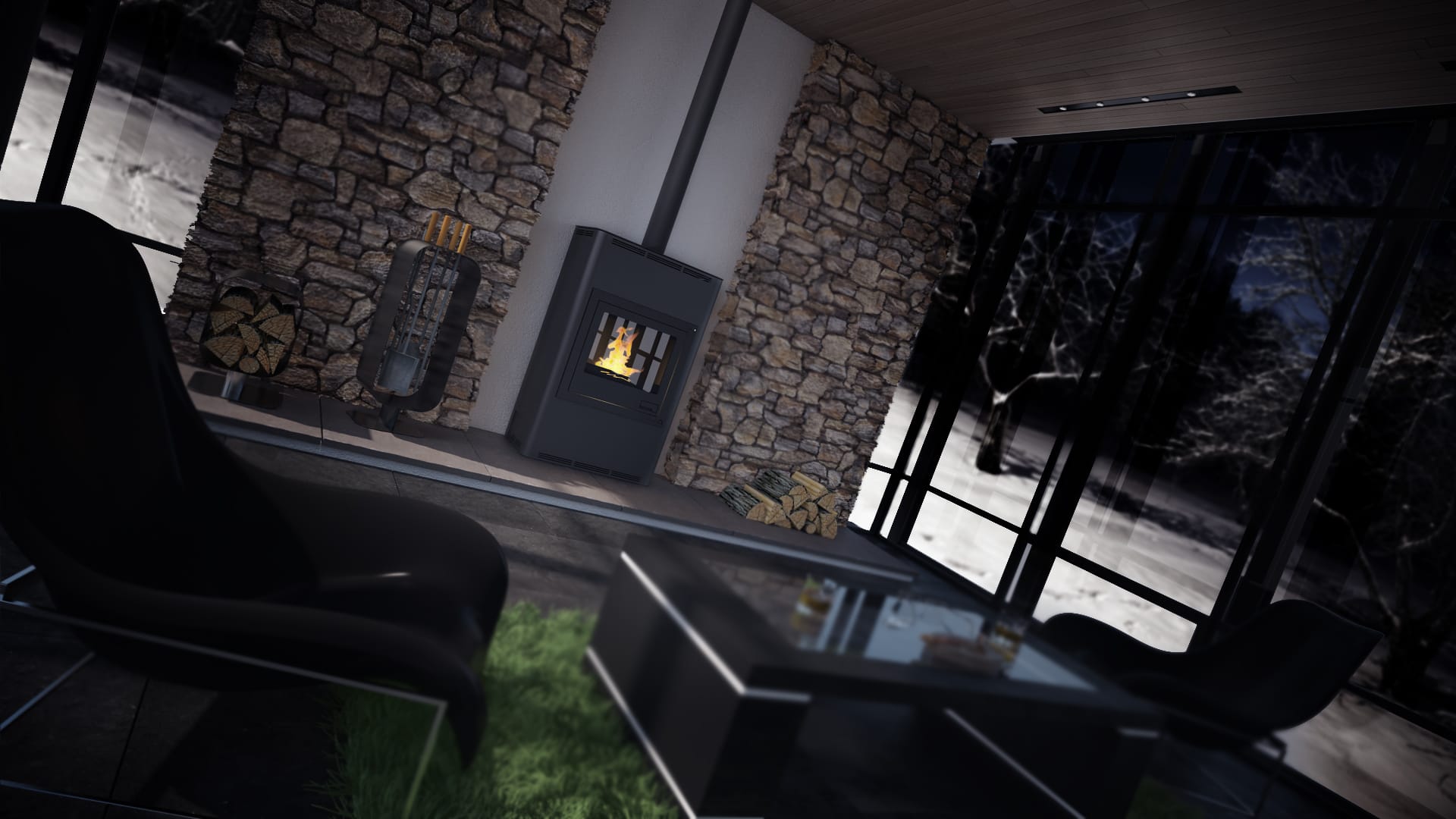

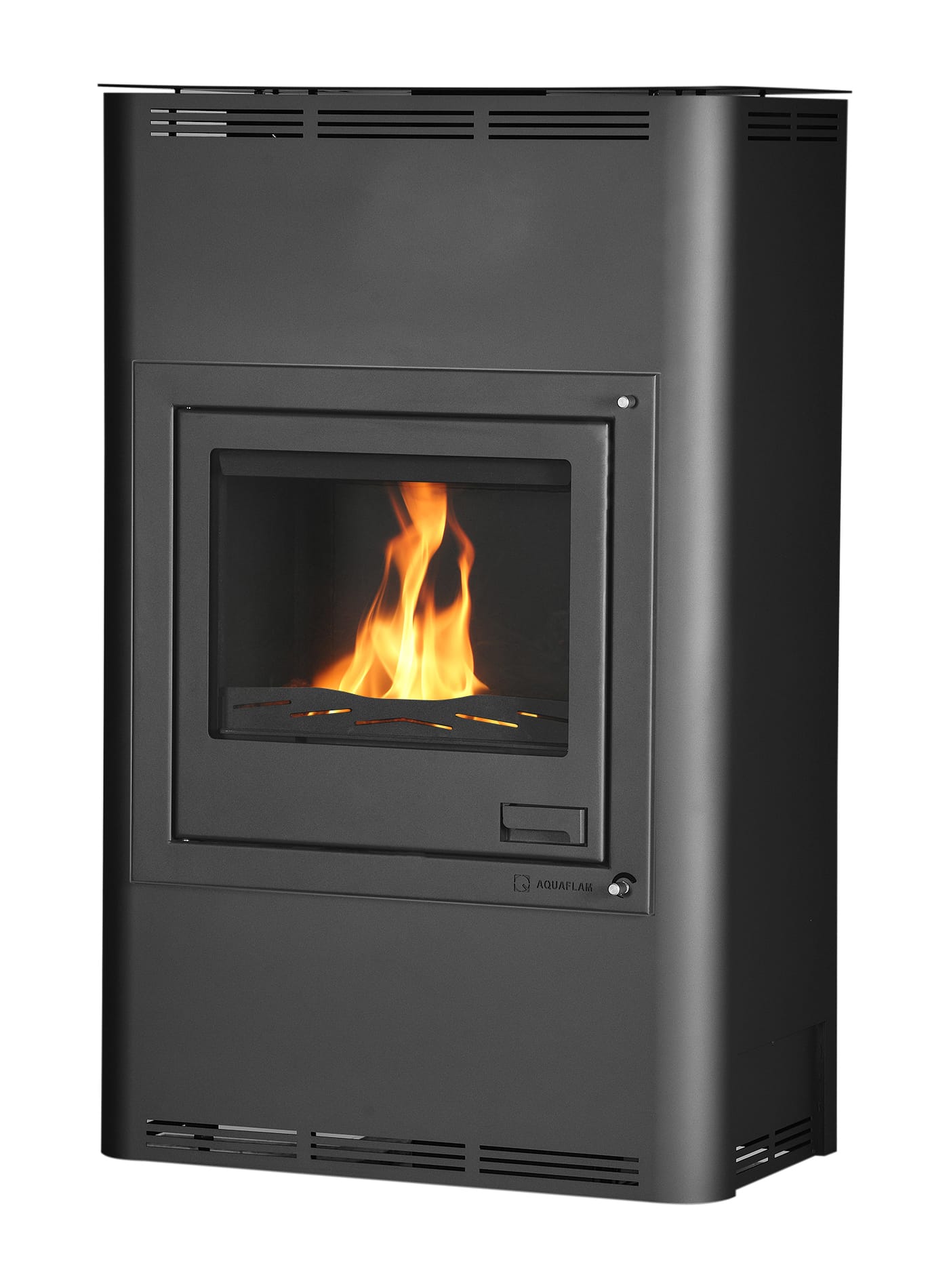

25 kW, black

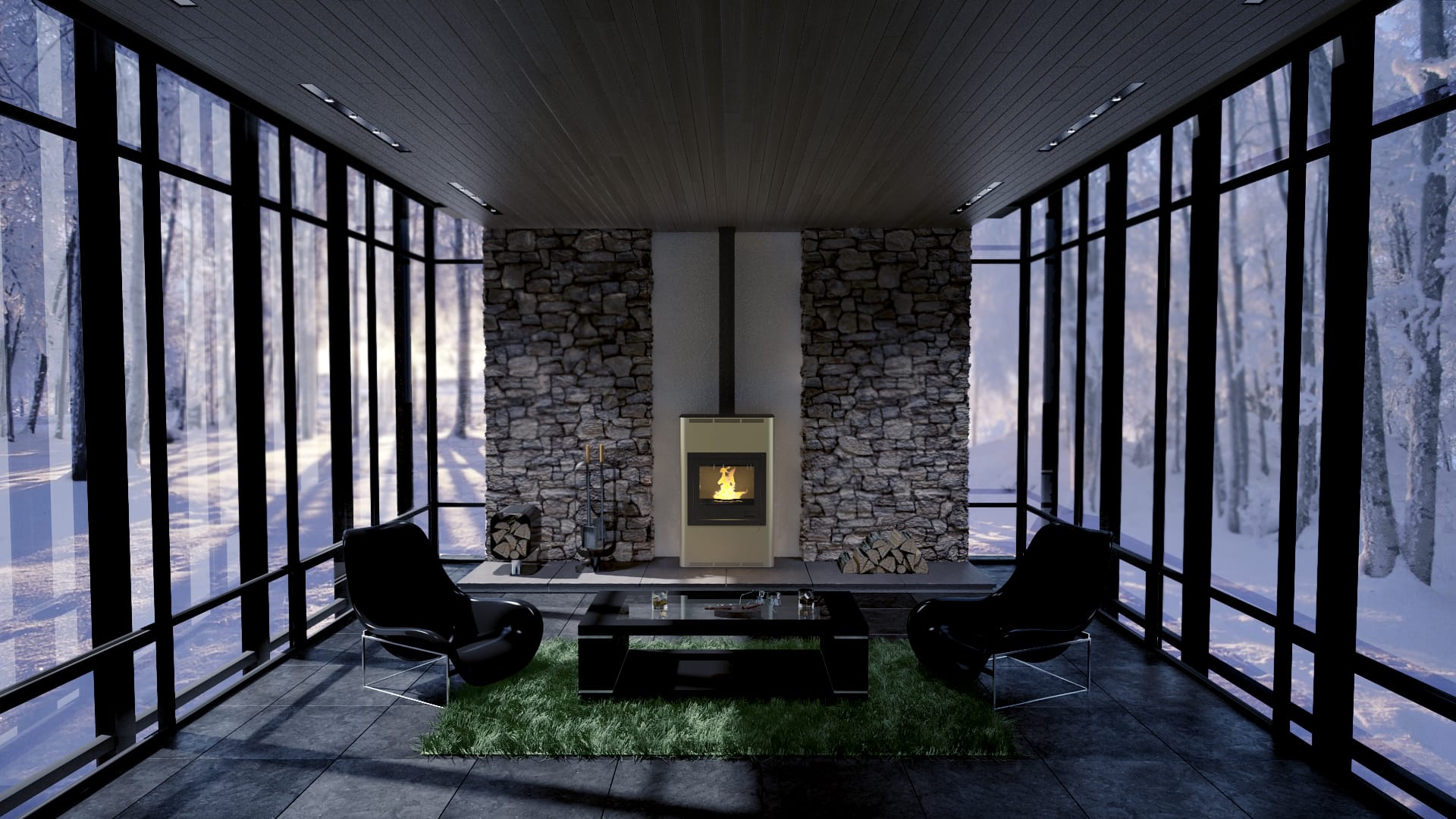

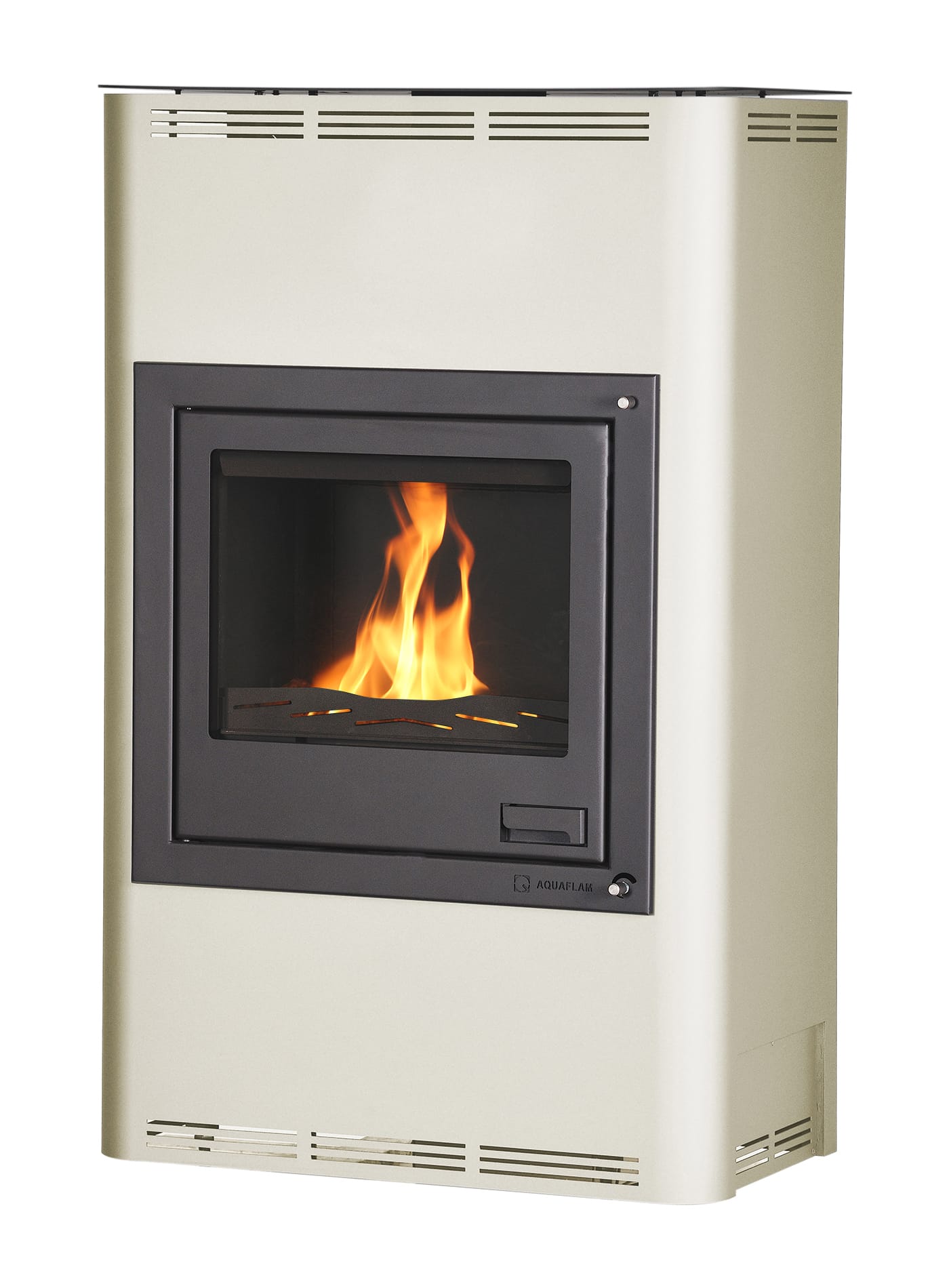

25 kW, cream

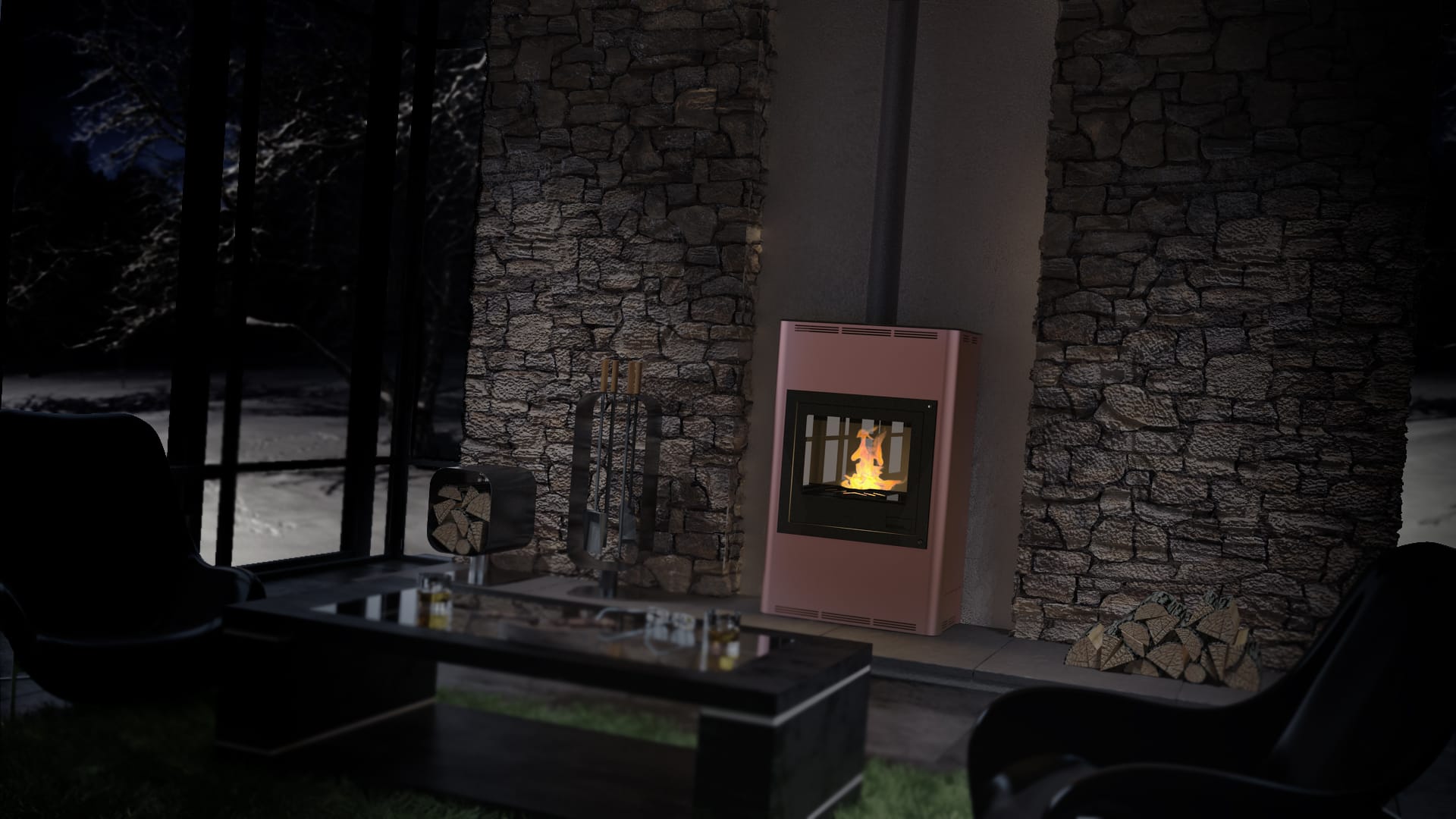

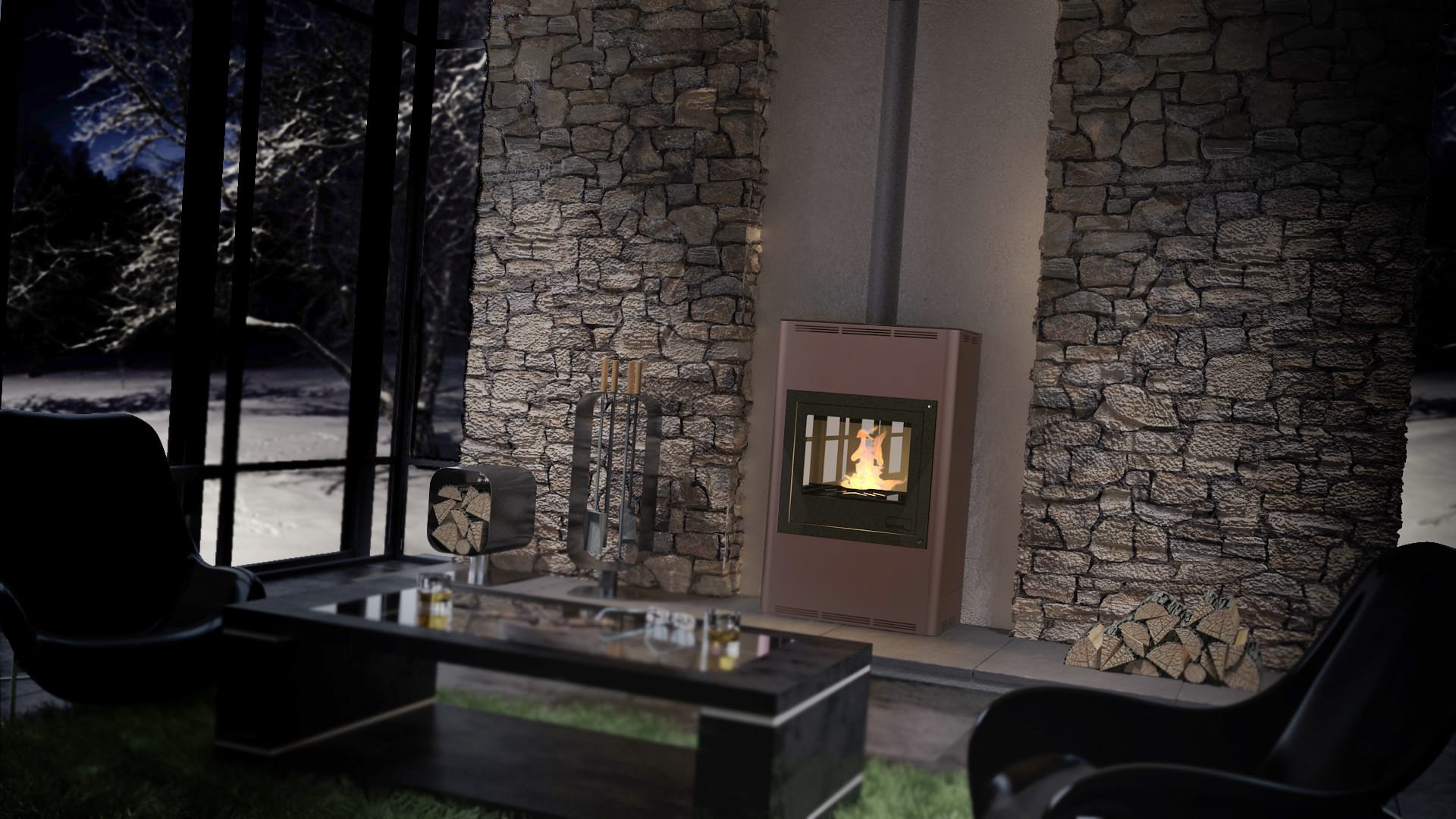

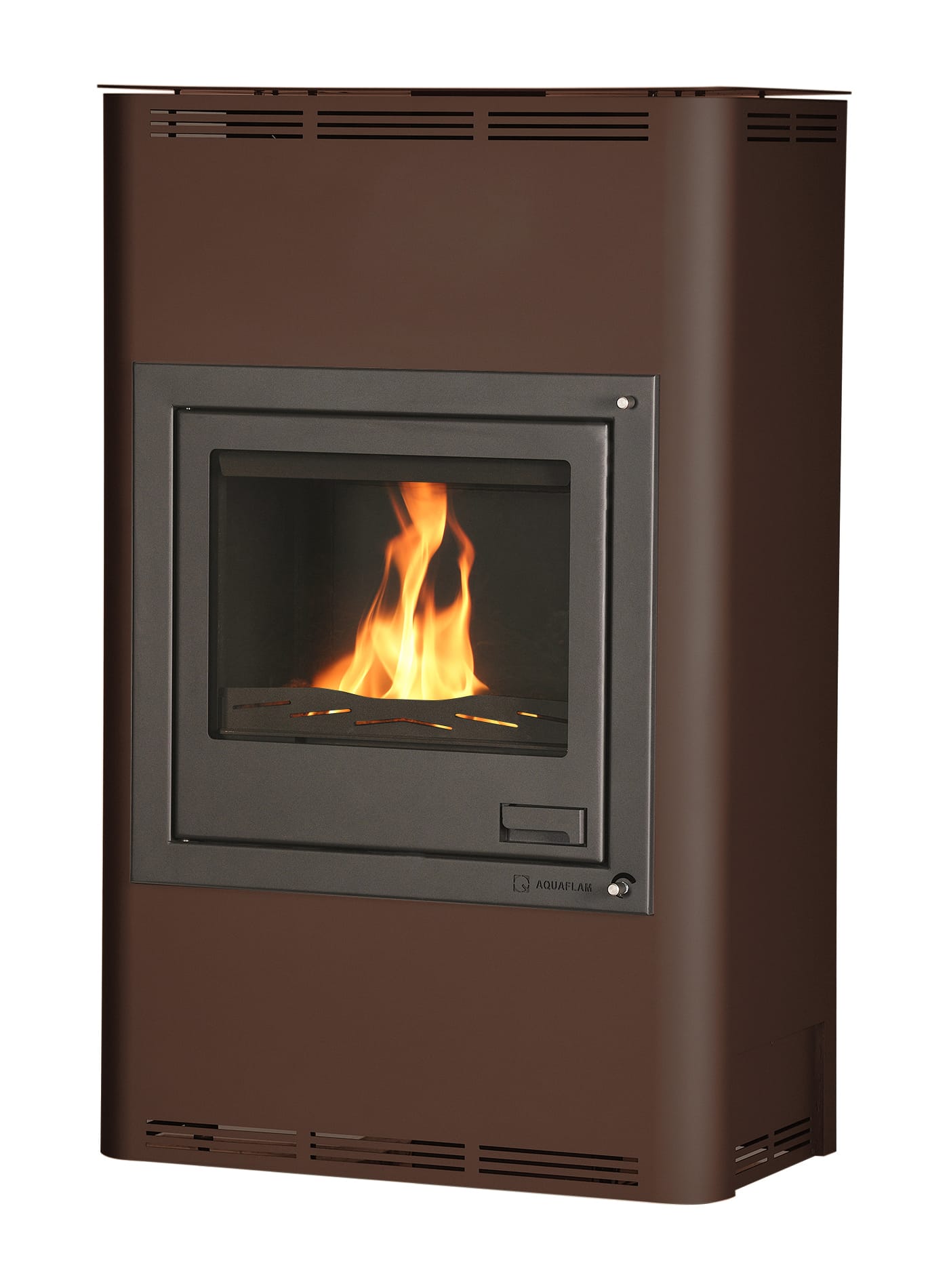

25 kW, brown velvet

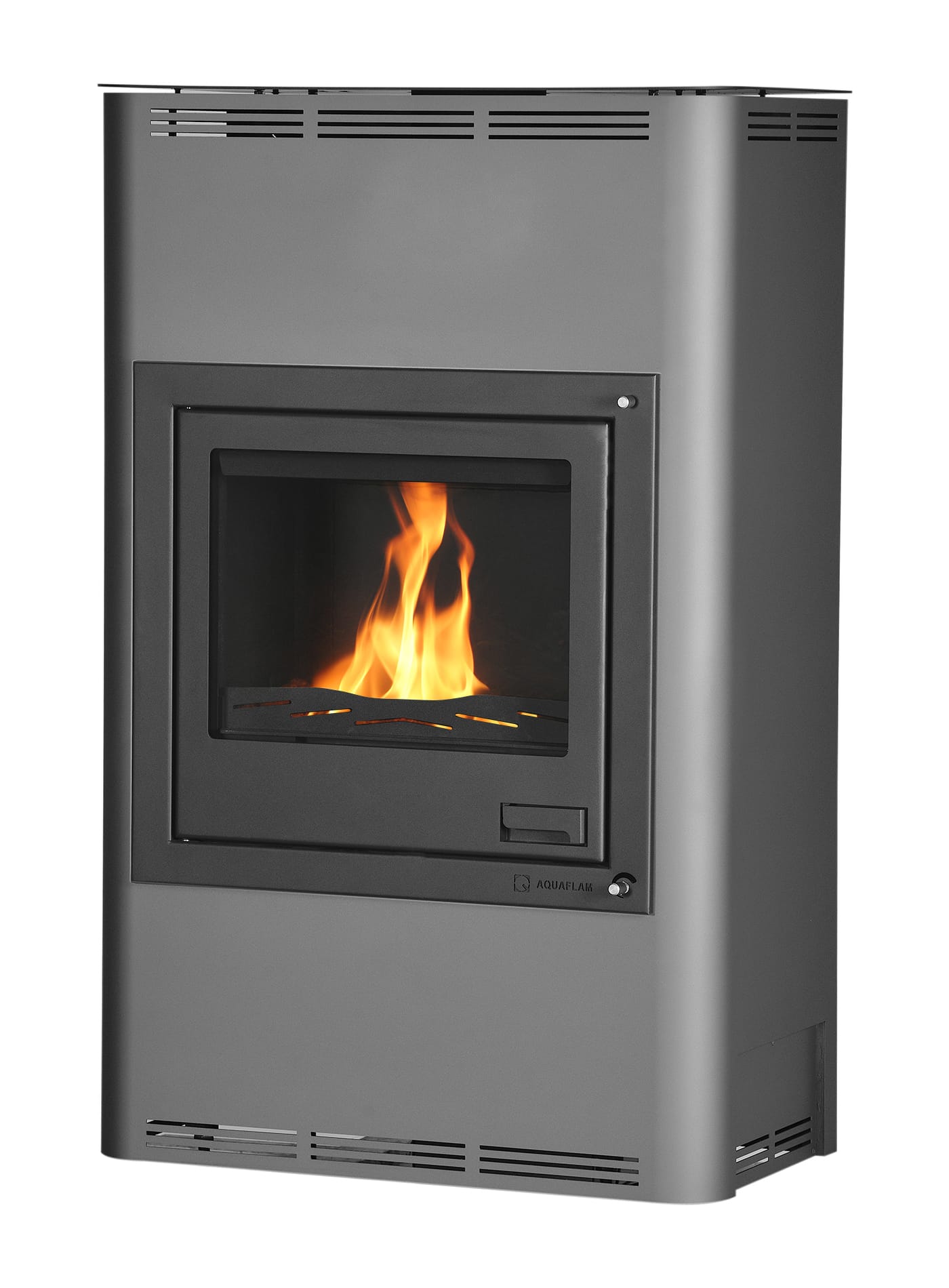

25 kW, gray
Basic Properties of Aquaflam Hot Water Stoves: Hot Water, Convection Stoves, Efficient, Double Glass Airwash with Preheated Air, Secondary combustion, Eco-Air-In brand of ecological heating Flamme Verte, meets standards: EN 13229, BImSchV - Stufe 2, DINplus, Flamme Verte, outdoor air supply (primary, secondary, tertiary air supply), no fireclay technology (absence of lining leads to a more general transfer of heat to the exchanger), possibility of double-sided connection of the exchanger water, cooling loop in each variant, 2 outputs for sensor connection, damper for chimney draft control, cast iron grate, ashtray, 5-year warranty.
Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.
Combustion control
Manual regulation
The air supply is controlled manually by a push / pull rod.
Basic regulation
The stove is operated by a potentiometer in the lower right corner of the door.
Parameters
| Fireplace stove Aquaflam | 7 kW | 12 kW | 17 kW | 25 kW |
|---|---|---|---|---|
| Power to the water [kW] | 5 | 10 | 14 | 21 |
| Power to air [kW] | 2 | 2 | 3 | 4 |
| Performance range [kW] | 3 –10 | 8 – 16 | 13 – 21 | 21 –30 |
| The efficiency of the insert [%] | 79,1 | 79,1 | 79,0 | 78,0 |
| Emission CO (Při 13% O2) [%] | 0,1 | 0,1 | 0,1 | 0,1 |
| Average flue gas temperature: [°C] | 247 | 247 | 255 | 278 |
| Heat exchanger volume [l] | 22 | 27 | 32 | 36 |
| Weight [kg] | 165 | 175 | 207 | 228 |
| Flue gas duct [mm] | 160 | 160 | 180 | 180 |
| Length of logs [cm] | 35 | 35 | 45 | 55 |
| Warranty | 5 years | 5 years | 5 years | 5 years |
| Meets standards | EN 13240, BlmSchV - Stufe 2, Ekodesign | |||
